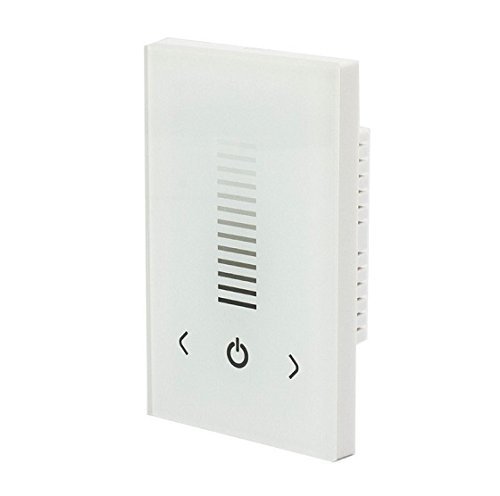

DC 12V-24V Touch Control LED Dimmer Switch, Wall-Mounted Glass Touch Panel Double Dimming Methods Controller for Single Color LED Lights [並行輸入品]

商品説明

This single color LED dimmer is adopted with high precision capacitance touch control chip which significantly increases the touch sensitivity and effectively reduced errors in operation.

To achieve a more accurate and smooth adjustment, use the 11 brightness adjustment bars to reach up to 255 grades of static brightness.

Glass panel screen provides incomparable touch feelings for users and ensures smooth operation. The dimmer is also made to be very easy to clean and thus suitable for frequent usage.

You can use this dimmer to work with a variety of LED lighting fixtures. For instance, 12Volts LED light bulbs, 5050 and 3528 LED flexible single color strip light, ceiling lights, panel lights etc.

Specification

External dimension: 120(L)*74(W)*41.8(H) mm
Output power: 12V?96W?24V?192W?
Packing size: 145(L)*99(W)*53(H) mm
Working temperature: -20 to 60?
Static power consumption: under 1W
Power mode: common anode
Supply voltage: DC12~24V
Output voltage: DC12~24V
Gross weight: 189g
Output current: under 8A
Output: 1 channel
Net weight: 127g
Task: adjust

Kindly reminder :

1. Connect the load wire at first, following by the power wire; please double check to prevent short circuit possibility before you turn on the power.
2. The supply voltage of controller ranges in DC12V~DC24V, it may burn out the controller once exceed the voltage ranges.

Package includes?

1 pc touch panel dimmer
1 pc user manual
