Torchstar KBDM-1224V9A-RGB3CN PWM RGB LED Dimmer Controller with 3 Channel Output for Multi-Color and Single Color Strip Lights, DC, 12V-24V, 9 Amp [並行輸入品]
- メーカー
- Torchstar
- ブランド
- TORCHSTAR
- JAN
- 0741459501600
- メーカー品番
- KBDM-1224V9A-RGB3CN
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

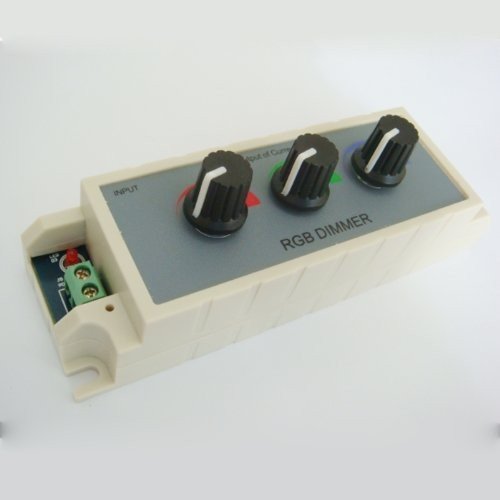

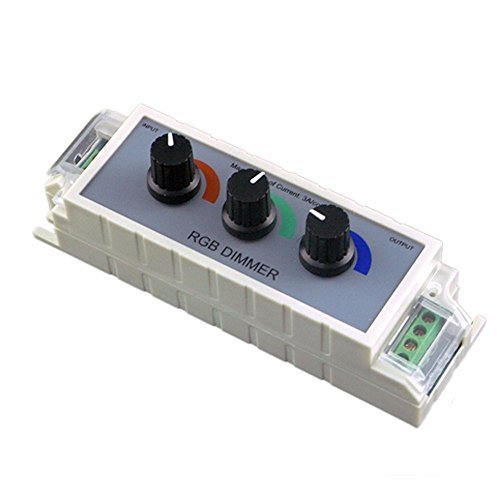

This LED Dimmer/RGB Controller can be used as a 3 channels LED single color strip light dimmer a LED RGB module / Flexible LED Strips as a static color controller.

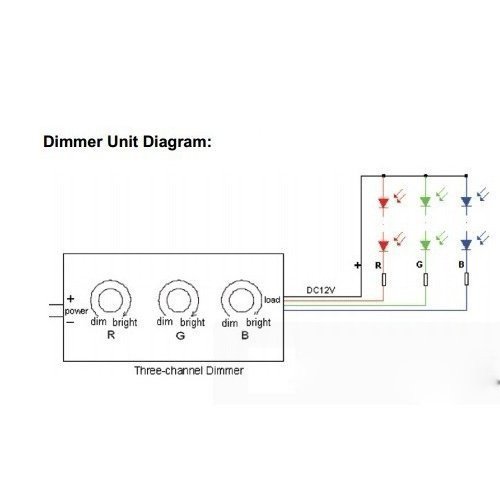

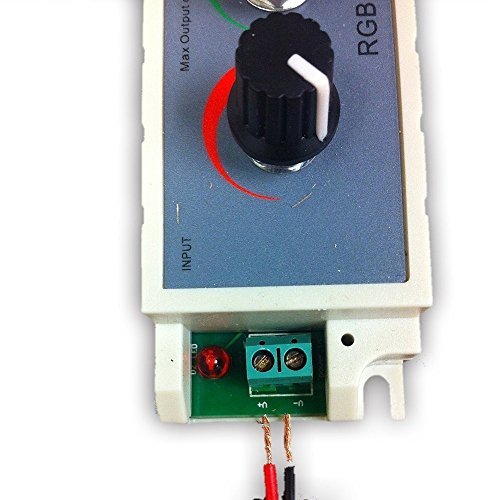

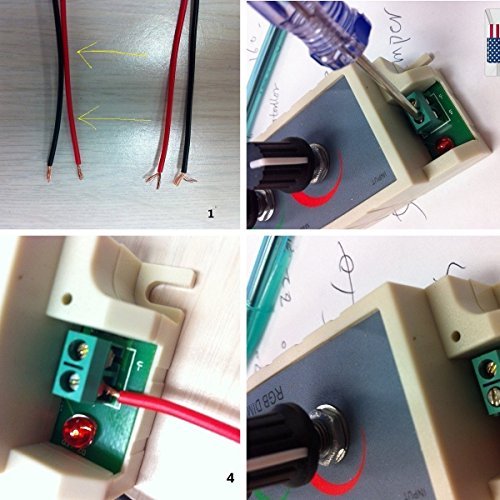

Universal Red/Green/Blue(RGB) dimmer-konbs can be used to adjust Red, Green and Blue from 0 to 100 percent for full range color creation. Endless RGB color combinations. Installation is quite easy, power up the unit with 12 to 24V DC power source and connect 3 output connection to RGB LED strip light or a Solid Color LED strip light. Electric wires and cables are easily connected to the unit through screwdown connectors, which makes 100% secure connections. Applications:
-For RGB LED strip controlling and dimming each color independently.
-For solid color LED strip with 3 independent channels
-For dynamic White LED strip, controlling color temprature
-For RGB modules
特記事項
- 新品、並行輸入品です。Brand new parallel imports from the US.
- Input voltage: DC12V-24V, 108W (12V )/ 316W (24V)
- Output: 3 channel
- Max load current: 3 Amps/channel (9 Amps total)
- IP rating: IP-55
