Trend LOCK/JIG/B Adjustable Lock Jig, Black [並行輸入品]

商品説明

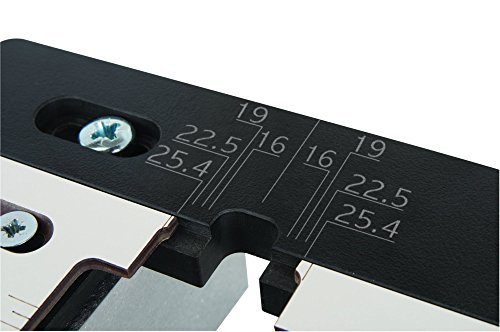

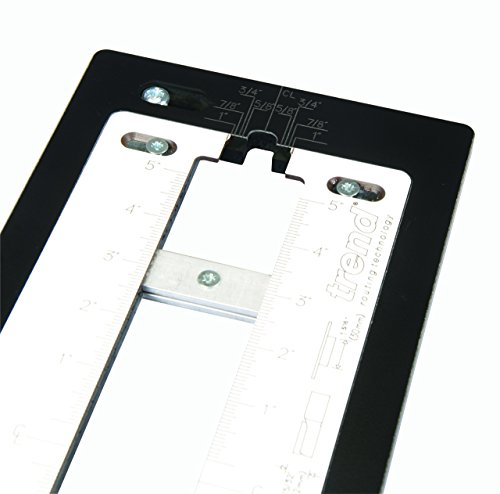

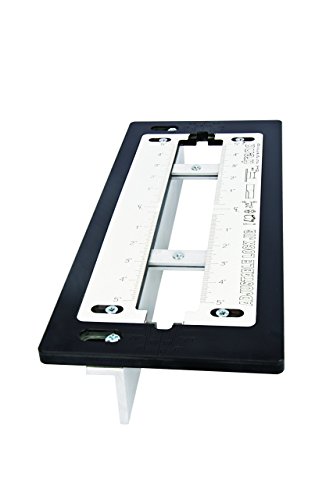

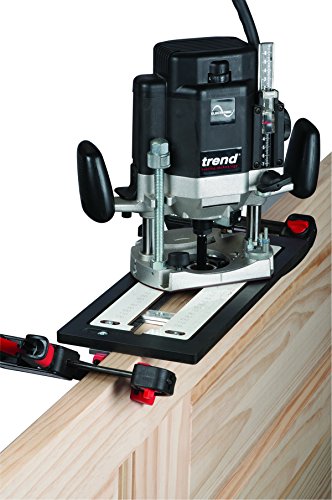

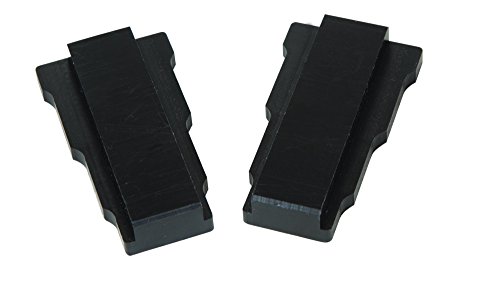

Adjustable sliding inserts to allow face-plate and mortise recesses for popular size door locks to be routed. Fully adjustable for lock face-plate length up to 10 inches. Quick and easy to set up using engraved lines for lock size and door sizes. Fast, clean & accurate results on doors even in hardwood. Engraved for 5/8 inch and 3/4 inch lock width and 7/8 inch and 1 inch face plate widths. Measuring required for other lock widths. Engraved on underside to allow set up for 1-3/8 inch, 1-3/4 inch, 2 inch and 2-1/8 inch door widths. Deeper mortises can be achieved with a suitable size of auger bit. Plastic laminate body with aluminum clamping bar, with clamping range 1-3/16 inch (30mm) to 3-9/64 inch (80mm). Includes a pair of setting blocks for specific lock widths and to aid door centering. Includes 15/32 inch diameter 1/2 inch shank TCT router bit and 1-3/16 inch screw-on style guide bush. Jig requires a router with 3-1/8 inch plunge and two quick action clamps. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.
