【UMKTOKYO】Arduino センサー/モジュール Audio Sound Sensor (AD-038 サウンドセンサー)×５個
- メーカー
- UMKTOKYO
- JAN
- 0696761638738
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
5PCS AD-038 Audio Sound Sensor Microphone Module for Electronic & MCU Education DIY project
Description:

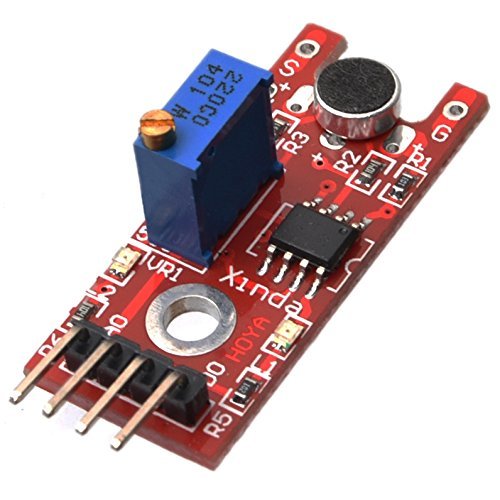

This neat little board is a great way to detect sounds with an Electronic Brick or other Microcontroller.
It's a simple and
effective way to detect a loud percussive sound like a clap or a knock.
This useful module is fast response, great anti-interference ability and durable.
Features:
•AD-038 Audio Sound Sensor Microphone Module for Electronic Brick Electronic Brick & MCU Education DIY
project
•An onboard LM393 comparator IC compares the signal from the microphone with an adjustable reference
voltage.
•Whenever the microphone's voltage exceeds the reference voltage, the comparator's output goes high.
•The reference voltage is set by adjusting the 100K trimmer pot.
•Only 3 wires are necessary for operation, Ground, Voltage + (5VDC) and a Digital Pin. It also includes
an Analog Output pin that provides access to the microphone's output voltage, but this is not needed for
most applications.
•All pins are standard 0.1" spaced
•Pin Connector to board : 4 Pins
Applications:
•Electronic Brick
•MCU
•And others DIY project
Package Included:
•5PCS AD-038 Audio Sound Sensor Microphone Module for Electronic & MCU Education DIY project
