BLE4.0 Bluetooth NRF51822 Module 2.4G Wireless Communication Module Transmitter Receiver Development Evaluation Kit
- メーカー
- UMKTOKYO
- JAN
- 0696761926217
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Description

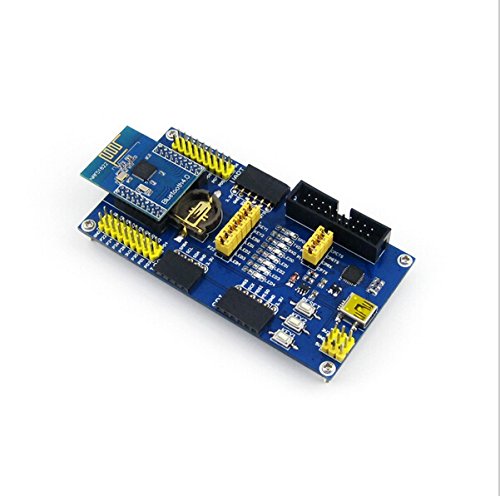

NRF51822 Eval Kit is a development/evaluation kit designed for nRF51822, consists of the mother board
BLE400 and the wireless module Core51822.

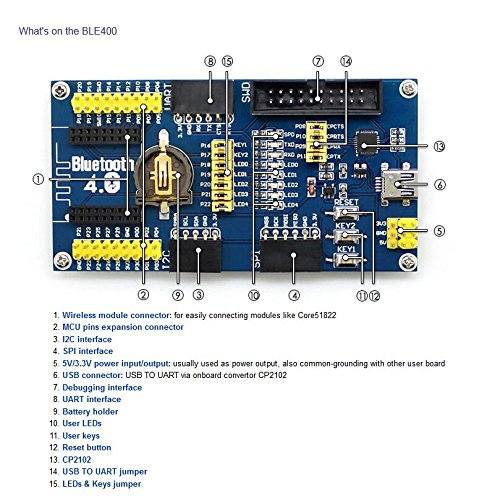

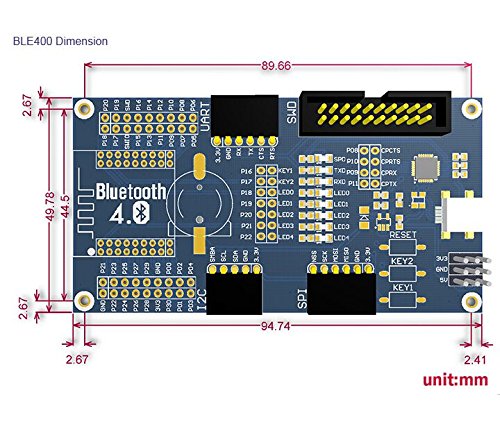

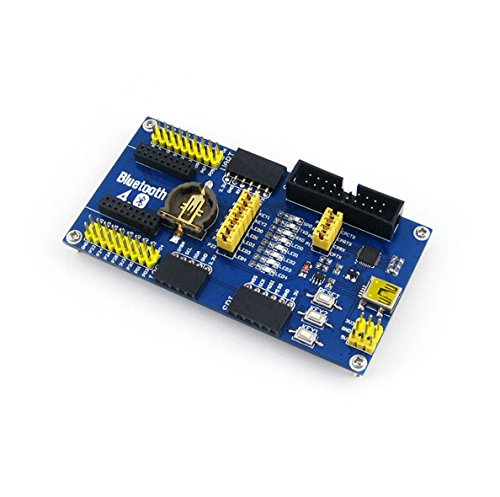

BLE400 Features
Onboard battery holder, multi power supplies are available
All the IOs are accessible for easy expansion
Integrates CP2102 for debugging
LEDs and user keys, compatible with other official boards, easy to use
nRF51822 Features
2.4 GHz multiprotocol RF transceiver
ARM® Cortex™-M0 32 bit processor
128 bit AES HW encryption
256kB flash & 32kB RAM
Programmable Peripheral Interconnect (PPI)
Digital interfaces: SPI, I2C, UART
10 bit ADC
Programmable output power: -20 to +4 dBm
Independent application development and protocol stack
Fully compatible with NRF24L series
Pinout compatible with NRF51xxx series
Global separate power management
Operating voltage: 1.8 V - 3.6 V

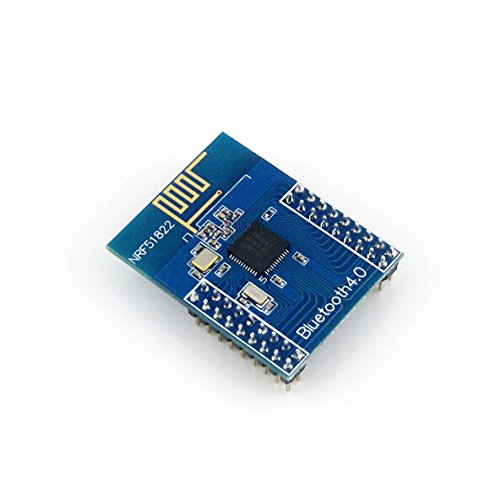

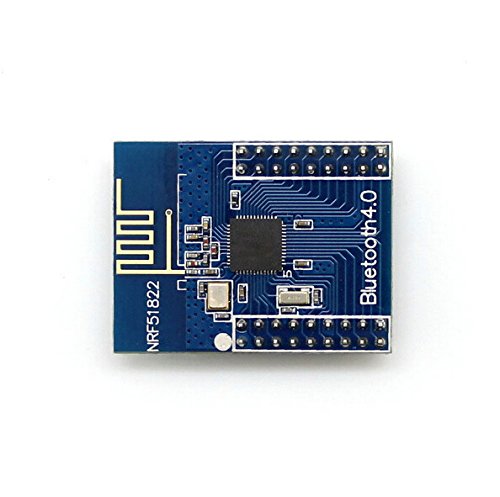

Core51822 Fearures
Onboard chip: nRF51822
Communication distance (open outdoor@1M data rate): 30m
Frequency range: 2.4GHz
Operating voltage: 2.0V ~ 3.6V
Operating temperature: -40C ~ 85C
Dimension (PCB): 24.5mm x 32.26mm

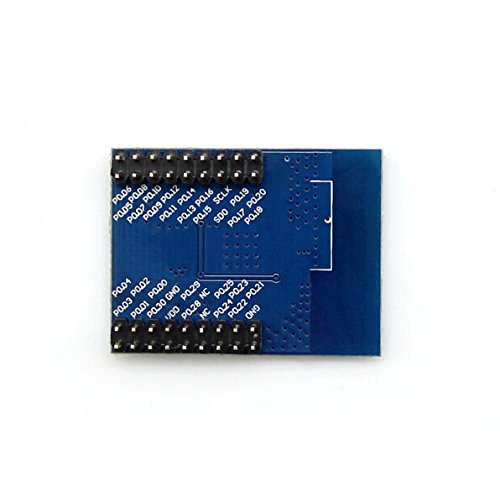

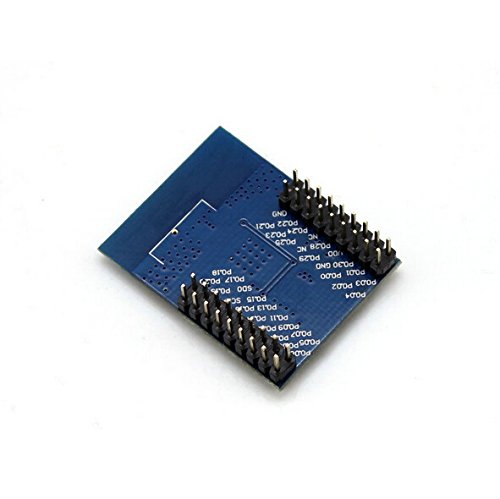

Expansion pinheader: all the I/Os except P0.26 and P0.27
Pinheader pitch: 2.00mm
Spacing between pinheaders on the left side and the right side: 18.00mm
Antenna: onboard antenna
パッケージ内容：
1 x BLE400
1 x Core51822
1 x USB type A to Mini-B cable
