ZigBee Module Core2530 CC2530F256RHAR CC2530F256 Evaluation Development Board Core Kit CC2530
- メーカー
- UMKTOKYO
- JAN
- 0696761978490
- メーカー品番
- WXMK0065
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
ZigBee Module Core2530 CC2530F256RHAR CC2530F256 Evaluation Development Board Core Kit CC2530
Description:

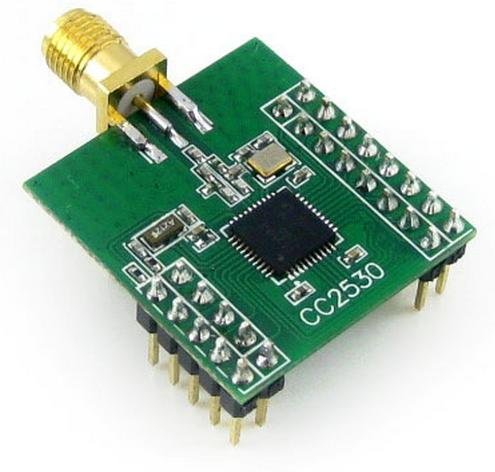

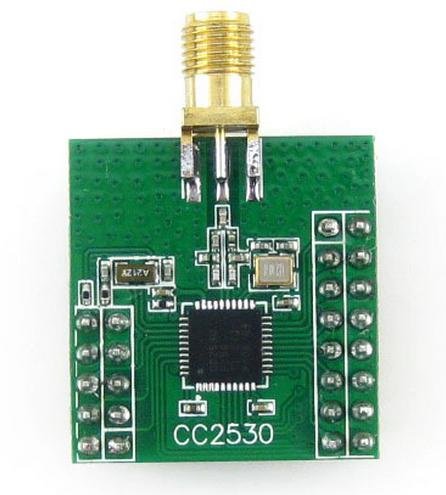

Core2530 is a ZigBee module based on CC2530F256.
Combined with our Coordinator/Router firmware, the Core2530 allows transparent transmission of UART
data, just as easy to use as any UART modules. It helps you to create ZigBee network and requires NO
knowledge about the complicate ZigBee Specification.
Besides the provided firmware, you can also develop your own application by using tools like IAR, CC
Debugger.
Features：
Onboard chip: CC2530F256RHAR
Communication distance (open and wide operating environment):
Absolute maximum: over 350 meters
Stable communication: over 250 meters
Auto connecting: over 120 meters
Frequency range: 2.4GHz
Wide supply-voltage range (2 V–3.6 V)
Operating temperature: -40C~ 85C
Serial port baud rate: 38400bps (default), different baud rates are available by software configuration
Dimension: 26mm x 27mm (PCB)

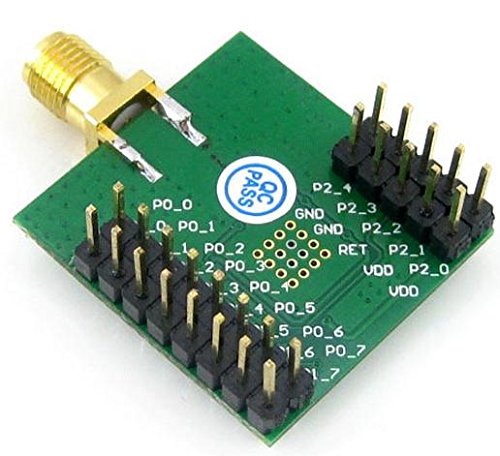

Expansion pinheader: all the I/Os
Pinheader pitch: 2.54mm
Spacing between pinheaders on the left side and the right side: 22.86mm (9x2.54mm)
Antenna: 2.4G 2DB 360° omni-directional
Package included:
1 X Core2530

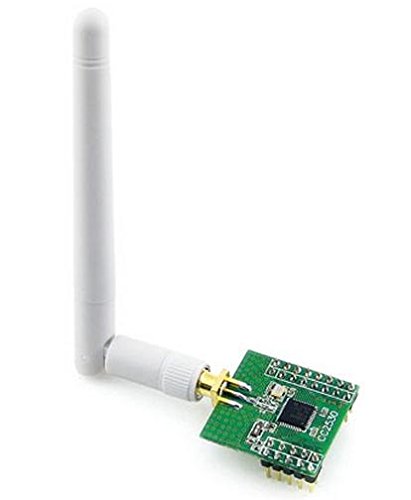

1 X Antenna
特記事項
- Core2530 is a ZigBee module based on CC2530F256.
- Combined with our Coordinator/Router firmware, the Core2530 allows transparent transmission of UART data, just as easy to use as any UART modules. It helps you to create ZigBee network and requires NO knowledge about the complicate ZigBee Specification.
- Besides the provided firmware, you can also develop your own application by using tools like IAR, CC Debugger.
