Motion Monitor 10 DOF IMU Sensor (B) Features MPU9255 BMP180 Detects Position Height Temperature Quadcopter Balancing Robots
- メーカー
- UMKTOKYO
- JAN
- 0696761473162
- メーカー品番
- WXMK0069
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

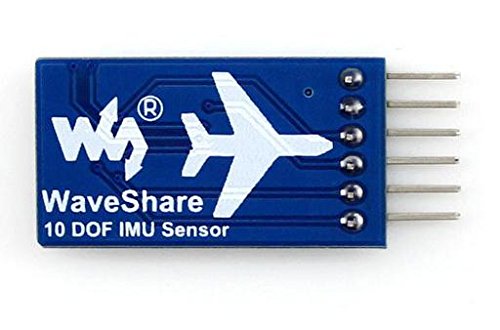

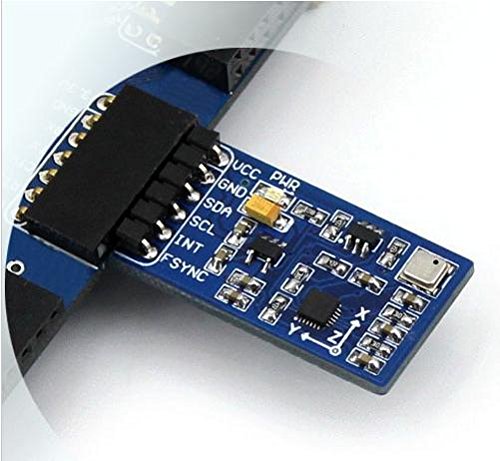

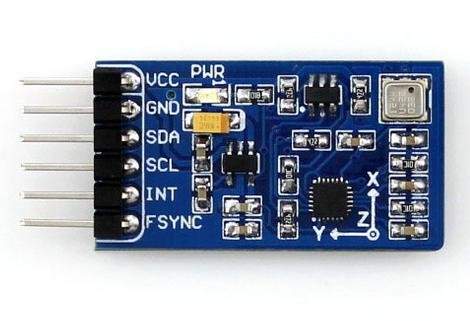

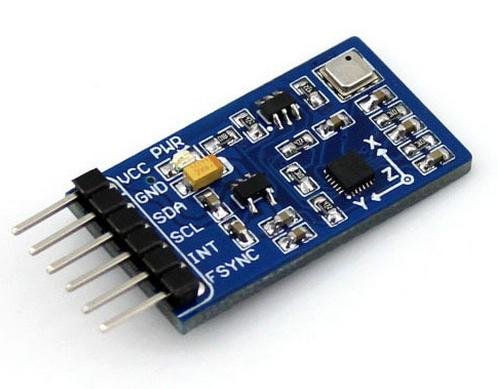

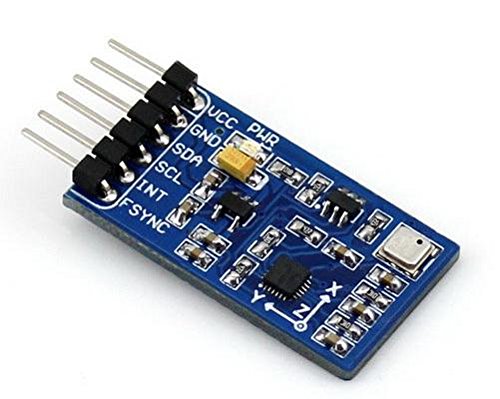

Motion Monitor 10 DOF IMU Sensor (B) Features MPU9255 BMP180 Detects Position Height Temperature
Quadcopter Balancing Robots
Description:
10 DOF IMU Sensor (B) is good at motion monitor, as well as detecting/measuring the position, height,
and temperature. It would be helpful for making your own copter or balancing robot, provides
great man-machine interaction.
Features:
MPU9255 : 3-axis gyroscope, 3-axis accelerometer, and 3-axis compass/magnetometer
Internal Digital Motion Processing? (DMP?) engine, offloads complicate fusion calculation, sensor
synchronization, gesture recognition, etc.
Comparing with MPU6050, the MPU9255 is lower power consumption, and more suitable for wearable devices
BMP180 : barometric pressure sensor
Embedded temperature sensor for temperature compensation
You can get the 10 DOF data through I2C interface
Application:
Quadcopter
Balancing robots
Indoor inertial navigation
Barometric altimeter
Industry measurement
Package included:
1 X Motion Monitor 10 DOF IMU Sensor (B) Features MPU9255 BMP180 Detects Position Height Temperature
Quadcopter Balancing Robots
特記事項
- MPU9255 : 3-axis gyroscope, 3-axis accelerometer, and 3-axis compass/magnetometer
- Internal Digital Motion Processing? (DMP?) engine, offloads complicate fusion calculation, sensor synchronization, gesture recognition, etc.
- Comparing with MPU6050, the MPU9255 is lower power consumption, and more suitable for wearable devices
- BMP180 : barometric pressure sensor
