Altera Cyclone Board EP4CE6 EP4CE6E22C8N ALTERA Cyclone IV FPGA Development Board Kit All I/Os = OpenEP4CE6-C Standard
- メーカー
- UMKTOKYO
- JAN
- 0696761533927
- メーカー品番
- WXMK0074
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Altera Cyclone Board EP4CE6 EP4CE6E22C8N ALTERA Cyclone IV FPGA Development Board Kit All I/Os =
OpenEP4CE6-C Standard
Description:

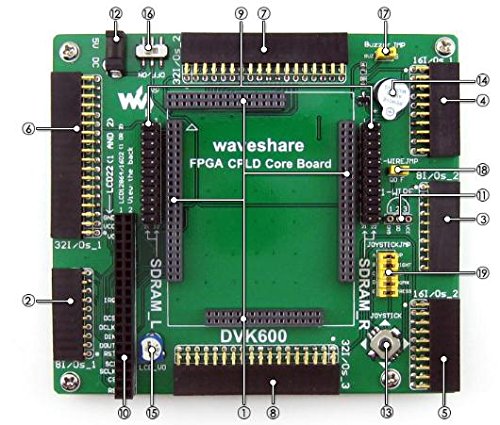

OpenEP4CE10-C is an FPGA development board that consists of the mother board DVK600 and the FPGA core
board CoreEP4CE10.
OpenEP4CE10-C supports further expansion with various optional accessory boards for specific application.
The modular and open design makes it the ideal for starting application development with ALTERA
Cyclone IV series FPGA devices. OpenEP4CE10-C enables you to start your design with the Nios II processor
easily and quickly.

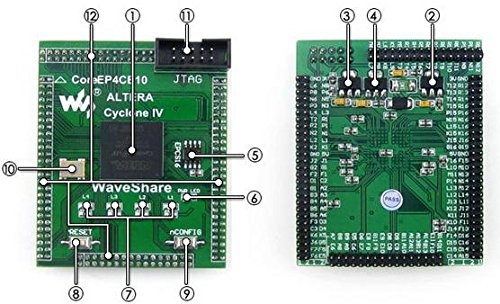

Features:
•onboard Serial Configuration Device EPCS16SI8N
•integrated FPGA basic circuit, such as clock circuit
•onboard nCONFIG button, RESET button, 4 x LEDs
•all the I/O ports are accessible on the pin headers

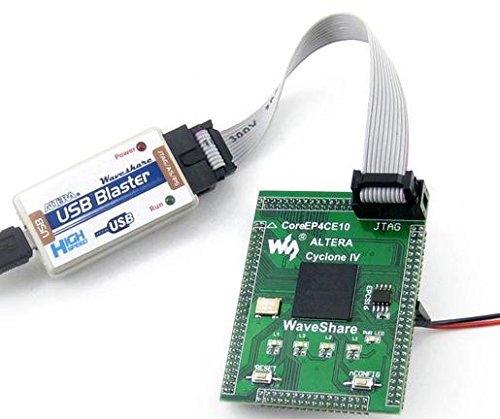

•onboard JTAG debugging/programming interface
•2.54mm header pitch design, suitable for being plugged-in your application system
EP4CE6E22C8N: the ALTERA Cyclone IV FPGA device which features:
•Operating Frequency: 50MHz
•Operating Voltage: 1.15V~3.465V
•Package: QFP144
•I/Os: 80
•LEs: 6K
•RAM: 270kb
•PLLs: 2
•Debugging/Programming: supports JTAG
Package included:
•1 X CoreEP4CE6 core board
•1 X USB power cable
•1 X User guide CD
特記事項
- Altera Cyclone Board CoreEP4CE6 EP4CE6E22C8N EP4CE6 ALTERA Cyclone IV CPLD & FPGA Development Core Board Full IOs
- onboard Serial Configuration Device EPCS16SI8N
- integrated FPGA basic circuit, such as clock circuit
- onboard nCONFIG button, RESET button, 4 x LEDs
