5050 RGB full color LED water lamp module / SCM water lights arduinoSB robot
- メーカー
- UMKTOKYO
- JAN
- 0786561899283
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Description:

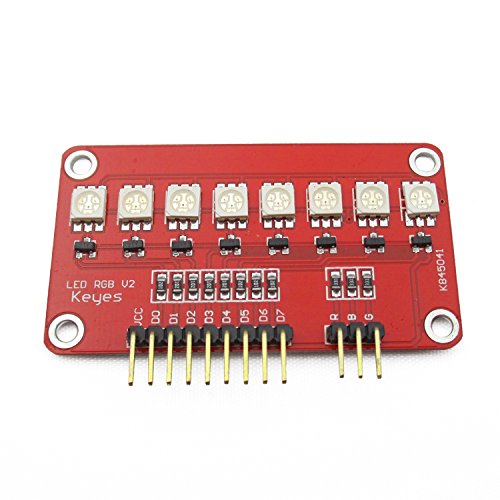

5050 RGB full color LED water lamp module / SCM water lights arduinoSB robot
Features:
Excellent PCB design, very beautiful
8 three primary colors (red, green and blue) full-color LED, scanning control mode
And digital control in the same way, bit option controls the corresponding LED
lights, segment selector control color
It can produce different color change effect through different procedures
Suitable for 51 / AVR / AVR / ARM / arduino other platforms
Usage:
D0-D7 these eight pins respectively to control 8 LED, so long as corresponding with
arduino digital pins are connected like (as long as we turn this experiment
received 2 to 9-pin on OK). Also next three pin RGB, the need is connected
with GND, connected with R on the bright red, coupled with G on the light
green, connected with B on the light blue, even up on all three at the same
time light, I believe we all understand it.
Package included:
1 X 5050 RGB full color LED water lamp module / SCM water lights arduinoSB robot
特記事項
- 5050 RGB full color LED water lamp module / SCM water lights arduinoSB robot
- Excellent PCB design, very beautiful
- 8 three primary colors (red, green and blue) full-color LED, scanning control mode
- And digital control in the same way, bit option controls the corresponding LED lights, segment selector control color
