4 -Way Infrared Tracking Module Transmission Line Modules Obstacle Avoidance Car Robot Sensors for Arduino

商品説明

Description:

4 -Way Infrared Tracking Module Transmission Line Modules Obstacle Avoidance Car
Robot Sensors for Arduino

Features:

Operating voltage: DC 3.3V-5V
Current: try to choose more than 1A power supply
Working temperature: -10 ℃ - + 50 ℃
Mounting Hole: M3 screw
Detection distance: 1mm to 60 CM adjustable, the closer the more stable
performance, a white reflective distances.

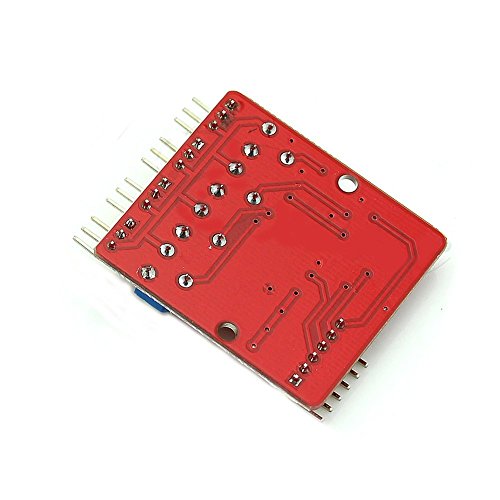

Size: in the control panel 42mm × 38mm × 12mm (length × width × height)

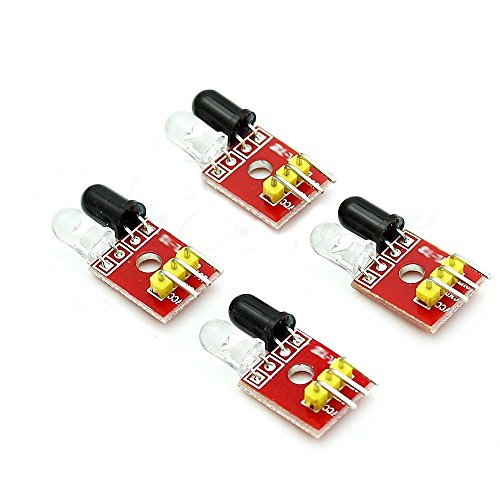

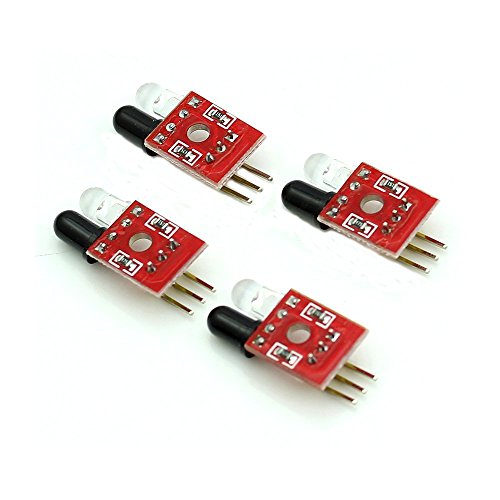

Small plate forward 25mm × 12mm × 12mm (length × width × height)
Output interface: 6-wire interface (1234 4-way signal output, + for the positive
power supply, - for the negative supply that is ground)
Output signal: TTL level (can be directly connected to the microcontroller I / 0,
the sensor sensing the reflected infrared light, red light is on, the output low;
when no infrared light, light is not on, the output high.)

Application:

Smart car or a robot hunt (including black and white lines), walking path along
the black line, also known as tracking.
Smart car to avoid the cliff, anti-drop.
Smart car to avoid obstacles

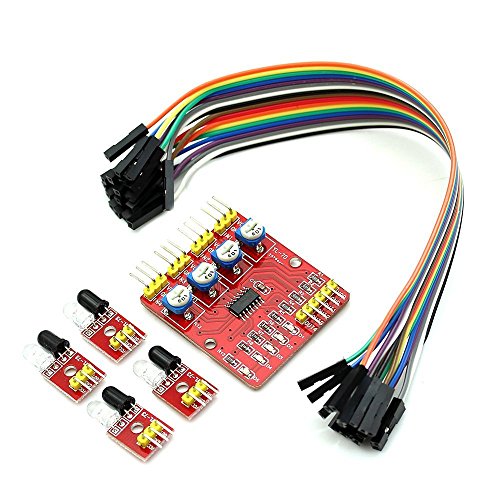

Package included:

1 X 4 -Way Infrared Tracking Module Transmission Line Modules Obstacle Avoidance
Car Robot Sensors for Arduino
