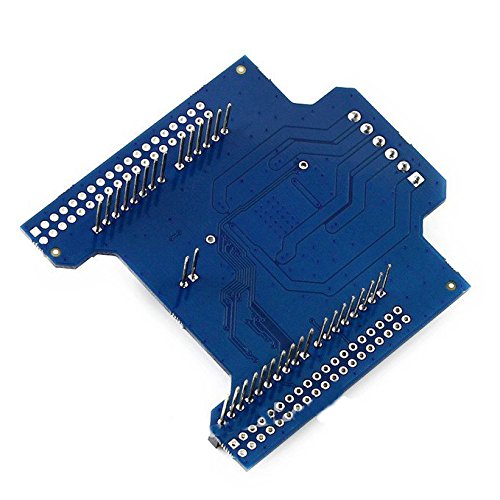

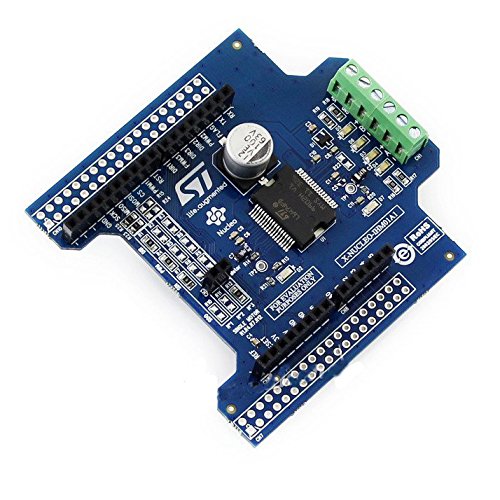

STM32 X-NUCLEO-IHM01A1 Board Stepper Motor Driver Expansion Board Based On L6474 Compatible With Arduino
- メーカー
- UMKTOKYO
- JAN
- 0786561182361
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Description:

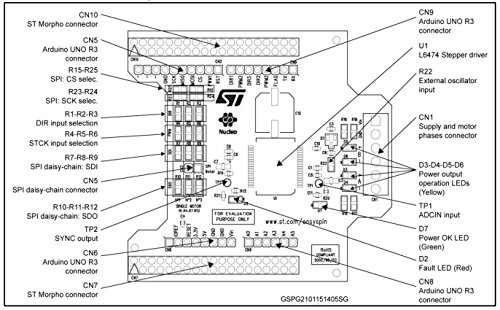

The X-NUCLEO-IHM01A1 is a stepper motor driver expansion board based on the L6474.
It provides an affordable and easy-to-use solution for driving a stepper motor in
your STM32 Nucleo project.
The advanced current control of the L6474 and a complete set of protection
features offer high levels of both performance and robustness.
The X-NUCLEO-IHM01A1 is compatible with the Arduino UNO R3 connector, and supports
the addition of other boards which can be stacked to drive up to three stepper motors with a single STM32 Nucleo board.
Features:
Voltage range from 8 V to 45 V
Phase current up to 3 Ar.m.s.
Power OK and fault LEDs
Advanced current control
Fully protected power stage
Up to 1/16 microstepping resolution
Compatible with Arduino UNO R3 connector
Compatible with STM32 Nucleo boards
Suitable for multi-motor solutions
RoHS compliant
Package included:
1 X-NUCLEO-IHM01A1
特記事項
- Voltage range from 8 V to 45 V
- Phase current up to 3 Ar.m.s.
- Power OK and fault LEDs
- Advanced current control
