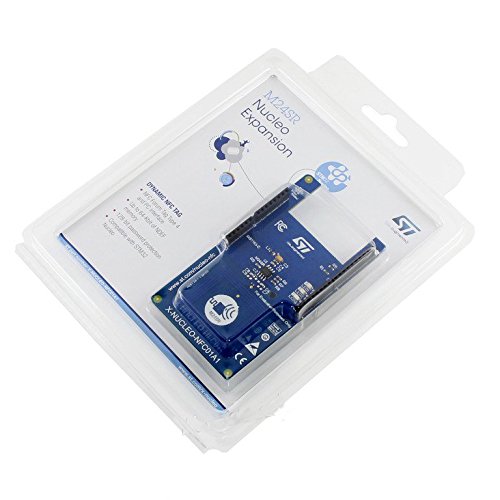

STM32 X-NUCLEO-NFC01A1 Dynamic NFC Tag Expansion Board Based On M24SR For STM32 Development Board M24SR64-Y IC
- メーカー
- UMKTOKYO
- JAN
- 0786561449839
- メーカー品番
- WXARD020
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Description:

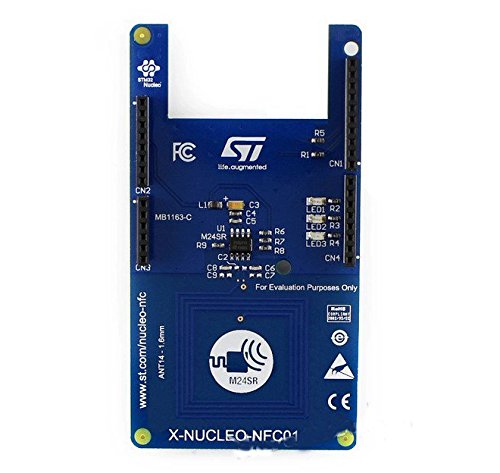

The X-NUCLEO-NFC01A1 is a Dynamic NFC tag evaluation board to allow expansion of
the STM32 Nucleo boards.
It is compatible with the Arduino UNO R3 connector layout and it is designed around
the M24SR64-Y. The M24SR64-Y device is a dynamic NFC/RFID tag IC with a dual interface.
It embeds a 64 Kbit EEPROM memory. It can be operated from an I2C interface or by a 13.56 MHz RFID reader or a NFC phone.
The board is powered through the Arduino UNO R3 connectors. It also includes three
LEDs for general purpose.
Features:
M24SR64-Y Dynamic NFC/RFID tag IC

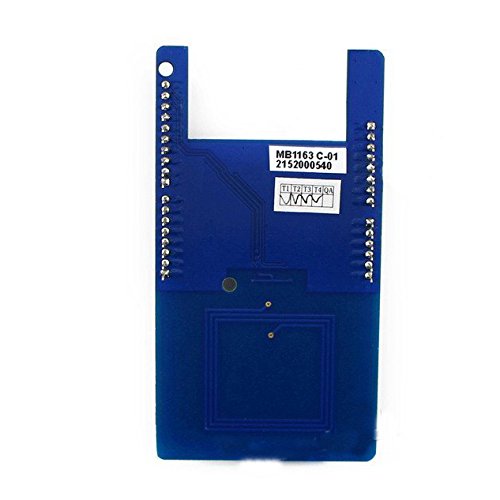

NFC antenna: 31 mm x 30 mm 13.56 MHz double layer inductive antenna etched on the
PCB (ANT14)
Compatible with STM32 Nucleo boards
Equipped with Arduino UNO R3 connector
Powered through the Arduino UNO R3 connectors
3 color LEDs for general purpose
Package included:
1 X-NUCLEO-NFC01A1
特記事項
- The X-NUCLEO-NFC01A1 is a Dynamic NFC tag evaluation board to allow expansion of the STM32 Nucleo boards.
- It is compatible with the Arduino UNO R3 connector layout and it is designed around the M24SR64-Y. The M24SR64-Y device is a dynamic NFC/RFID tag IC with a dual interface.
- NFC antenna: 31 mm x 30 mm 13.56 MHz double layer inductive antenna etched on the PCB (ANT14)
- Powered through the Arduino UNO R3 connectors
