X-NUCLEO-IKS01A1 Motion MEMS And Environmental Sensor Expansion Board For STM32 Development Board Nucleo Base On LSM6DS0,LIS3MDL,LPS25HB,HTS221
- メーカー
- UMKTOKYO
- JAN
- 0786561711264
- メーカー品番
- WXST3008
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Description:

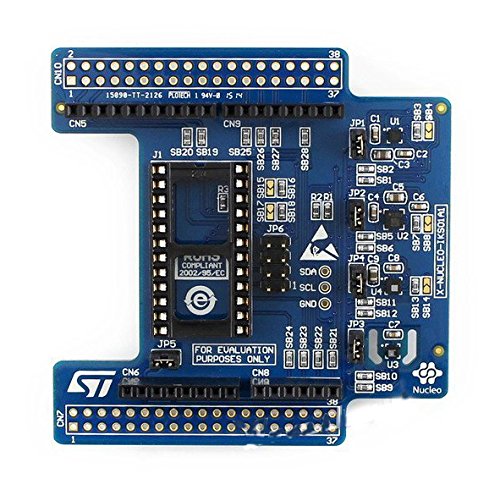

The X-NUCLEO-IKS01A1 is a motion MEMS and environmental sensor evaluation board system.

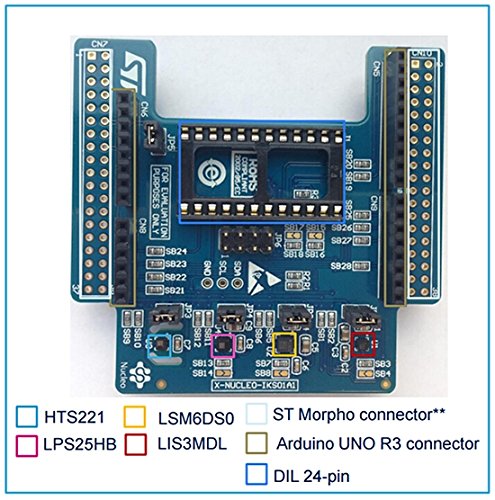

It is compatible with the Arduino UNO R3 connector layout, and is designed around STMicroelectronics'
LSM6DS0 3-axis accelerometer + 3-axis gyroscope, the LIS3MDL 3-axis magnetometer, the HTS221
humidity and temperature sensor and the LPS25HB* pressure sensor.
The X-NUCLEO-IKS01A1 interfaces with the STM32 microcontroller via the I2C pin,
and it is possible to change the default I2C port.
Features:
LSM6DS0: MEMS 3D accelerometer (±2/±4/±8 g) + 3D gyroscope (±245/±500/±2000 dps)
LIS3MDL: MEMS 3D magnetometer (±4/ ±8/ ±12/ 16 gauss)
LPS25HB*: MEMS pressure sensor, 260-1260 hPa absolute digital output barometer
HTS221: capacitive digital relative humidity and temperature
DIL 24-pin socket available for additional MEMS adapters and other sensors (UV index)
Free comprehensive development firmware library and example for all sensors
compatible with STM32Cube firmware
Compatible with STM32 Nucleo boards
Equipped with Arduino UNO R3 connector
RoHS compliant
Package included:
1 X X-NUCLEO-IKS01A1
特記事項
- The X-NUCLEO-IKS01A1 is a motion MEMS and environmental sensor evaluation board system.
- It is compatible with the Arduino UNO R3 connector layout, and is designed around STMicroelectronics' LSM6DS0 3-axis accelerometer + 3-axis gyroscope, the LIS3MDL 3-axis magnetometer, the HTS221 humidity and temperature sensor and the LPS25HB* pressure sensor.
- The X-NUCLEO-IKS01A1 interfaces with the STM32 microcontroller via the I2C pin, and it is possible to change the default I2C port.
