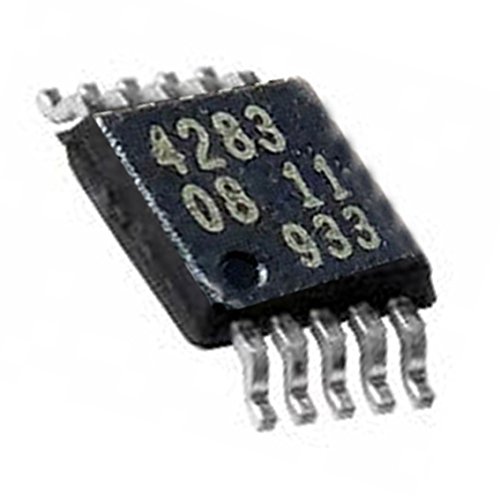

IP4283CZ10 IP4283CZ10-TT ESD protection for ultra high-speed interfaces
- メーカー
- UMKTOKYO
- JAN
- 0786561927719
- メーカー品番
- IN030024
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Feature：
Pb-free, RoHS compliant and free of Halogen and Antimony (Dark Green compliant)
System ESD protection for HDMI, DisplayPort, eSATA and LVDS
All signal lines with integrated rail-to-rail clamping diodes for downstream
ESD protection of ±8 kV according to IEC 61000-4-2, level 4
Matched 0.5 mm trace spacing
Signal lines with ≤ 0.05 pF matching capacitance between signal pairs
Line capacitance of only 0.6 pF for each channel
4-channel, UTLP10 or TSSOP10 Pb-free package
HDMI 1.3a compliant
DisplayPort compliant
Design-friendly ‘pass-thru’ signal routing
Application:
TVs, monitors
DVD recorders and players
Notebooks, main board graphics cards and ports
Set-top boxes and game consoles
Package included:
1 X IP4283CZ10 IP4283CZ10-TT ESD protection for ultra high-speed interfaces
特記事項
- The IP4283CZ10 is designed to protect high-speed interfaces such as HDMI, DisplayPort,eSATA and LVDS against ElectroStatic Discharge (ESD).
- The device includes high-level ESD protection diodes for ultra high-speed signal lines and is available in two package variants: UTLP10 and TSSOP10.
- All signal lines are protected by a special diode configuration offering ultra-low line capacitance of only 0.6 pF.
- These diodes provide protection to downstream components from ESD voltages up to ±8 kV contact according to IEC 61000-4-2, level 4.
