XILINX XC3S500E Spartan-3E FPGA Development Evaluation Board DVK600+Core3S500E+ LCD1602 + LCD12864 + 12 Modules Open3S500E Development Board Kit B

商品説明

Description:

Open3S500E is an FPGA development board that consists of the mother board

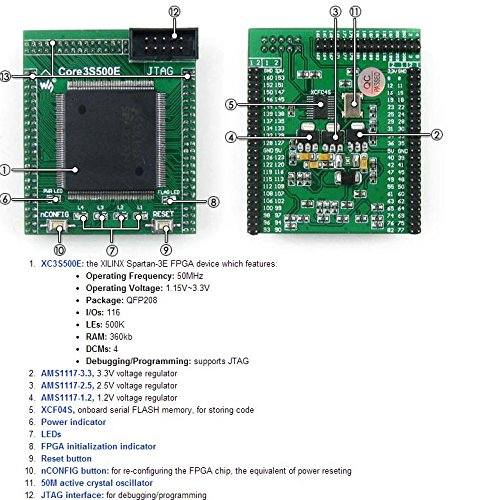

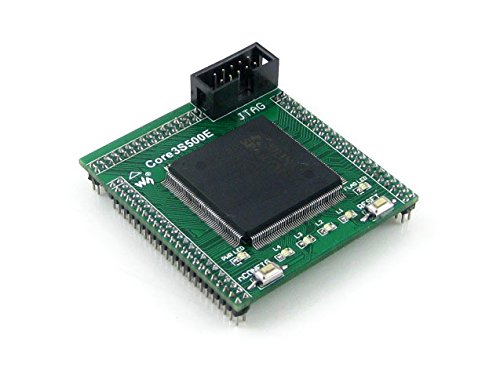

DVK600 and the FPGA core board Core3S500E.
Open3S500E supports further expansion with various optional accessory boards
for specific application. The modular and open design makes it the ideal for
starting application development with XILINX Spartan-3E series FPGA devices.

Note: The Open3S500E does NOT integrate any programming/debugging function, a
programmer/debugger is required.

Development Resources:

The Open3S500E FPGA development board comes with a User Guide CD including
development resources listed as below:
Related software (Xilinx ISE 12 - supports Winxp/Win7, doesn't support Win8)
Demo code (Verilog, VHDL)
Schematic (PDF)
FPGA development documentations

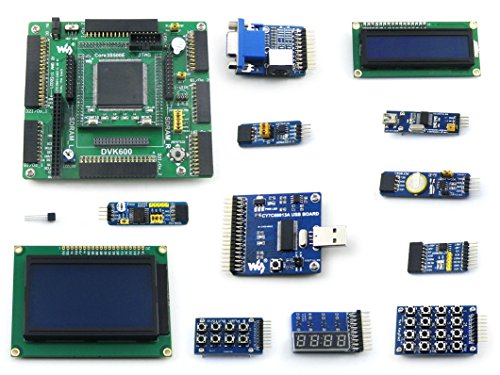

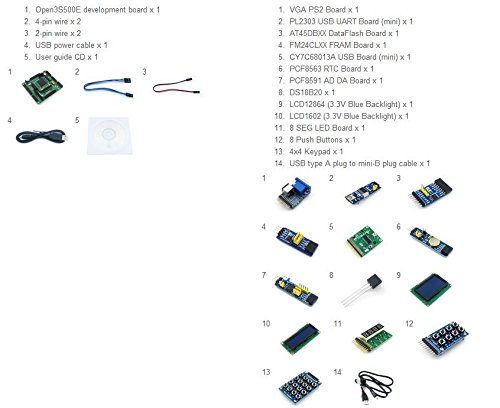

Package included:

1 X Open3S500E development board
2 X 4-pin wire
2 X 2-pin wire
1 X USB power cable
1 X User guide CD
1 X VGA PS2 Board
1 X PL2303 USB UART Board (mini)
1 X AT45DBXX DataFlash Board
1 X FM24CLXX FRAM Board
1 X CY7C68013A USB Board (mini)
1 X PCF8563 RTC Board
1 X PCF8591 AD DA Board
1 X DS18B20
1 X LCD12864 (3.3V Blue Backlight)
1 X LCD1602 (3.3V Blue Backlight)
1 X 8 SEG LED Board
1 X 8 Push Buttons
1 X 4x4 Keypad
1 X USB type A plug to mini-B plug cable
