[UMKTOKYO] AVR ATmega128 ATmega128A-AU ATmega128A AVR Development Board Starter Kit Full I/Os
- メーカー
- UMKTOKYO
- JAN
- 0786561739282
- メーカー品番
- WXMK0121
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

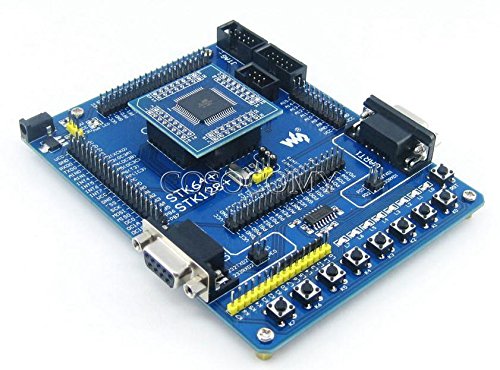

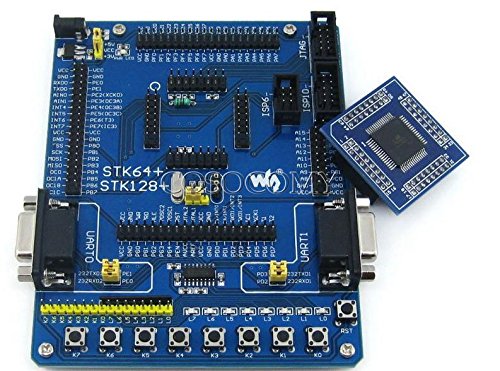

1.The STK128+ is a complete, cost-effective development board for the ATmega128. It is designed to give designers a quick start to develop code on ATmega128 MCU and makes them develope prototype device easily. 2.The ATmega128 chip is mounted on a device board, which can be separated from the mother board. Hence, easily changing MCU is supported. The ATmega128 chip is in TQFP64 package and will randomly be ATmega128-16AU or ATmega128L-8AU or ATmega128A-AU. Package Included: 1 X STK128+ (with an ATmega128 device board) 1 X USB power cable 2 X 4-pin wire 2 X 2-pin wire 1 X User Guide CD
特記事項

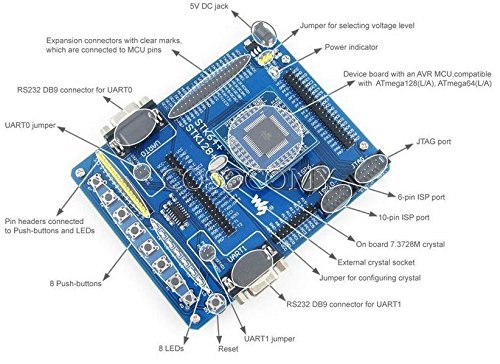

- Power:Powered from external 5V power supply through DC jack,Jumper for configuring voltage level to be applied, 5V/3.3V
- Onboard Chips:ATmega128 (TQFP64), MCU, mounted on the device board,AMS1117-3.3, on board regulator,MAX3232, True RS232 Transceivers
- Interfaces:Two RS232 connector for UART0 and UART1, DB9 standard,6-pin / 10-pin ISP port
- Human to Machine Interface:Reset button, used to reset the system,Power indicator LED,8 surface mounted LEDs, can be used as I/O status indicator,8 Push-buttons, for analog input
