60W LED POWER SUPPLY, 12V DC Output, 100-240V AC Input, IP67 Waterproof, UL/cUL Certified, CE, RoHS, Class 2 [並行輸入品]
- メーカー
- US LED Superstore
- ブランド
- Maxbrite
- JAN
- 0710308401606
- メーカー品番
- MDS12060-12
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

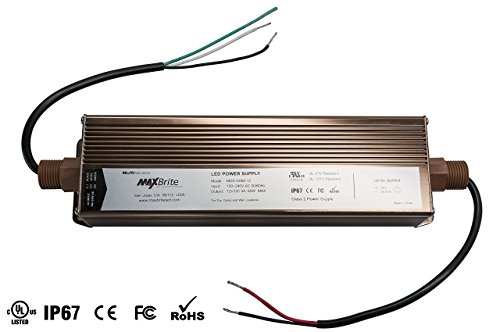

60 Watt COMMERCIAL GRADE LED Power Supply, 12V DC Constant Voltage Output, UL Class 2 Certified

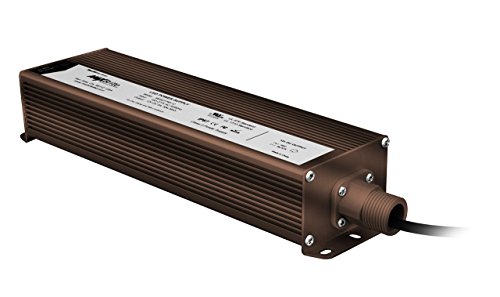

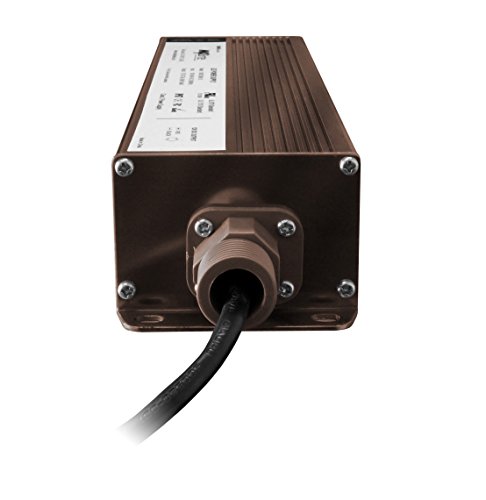

HEAVY DUTY Aluminum Extruded Case with J-Box Connector Ends, IP67 for Indoor or Outdoor Applications
PRODUCT SPECIFICATIONS:
? Input Voltage: 100-240V AC full range
? AC Draw: ??(0.86A@100V??0.37A@230V)
? Frequency: 47hz to 63hz
? Output Voltage: 12V DC 5 amps
? Output Power: ??60W (5A) Max
? Efficiency: 86%
? Overload Protection: Auto Recovery (over voltage, over current short circuit protection)
? Leakage Current: 0.25mA/240 AC
? Ripple and Noise: 100mVp-p
? Inrush Current: ??25°c cold start, 30A at 240AC
ENVIRONMENTAL:
? Operating Temperature: -22° to +158°F
? Humidity: 20%-90% (RH-NonCondensing)
? Cooling: ??Air Convection
? Vibration Frequency: 10 to 50 Hz
? MTBF: Khrs min MIL-HDBK-217F (25°C)
? Energy efficient, eco-friendly environment
? Certified: UL879, UL1310 Class 2 recognized
? Waterproof: IP67 rated for dry, damp and wet locations

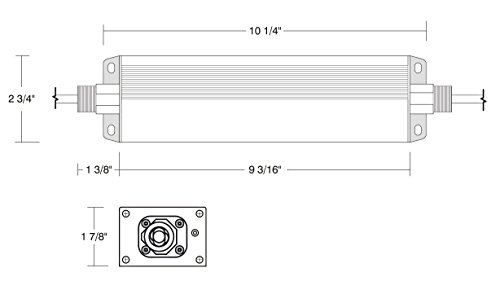

Product Dimensions: 10-1/4'' x 2-3/4'' x 1-7/8" (L x W x H)
Package Weight: ??????2.80 lbs.
Applications:
Signage and Back Lit Letters, Remote Channel Letters, Light Boxes and Raceway
Under-Cabinet Installation, RV/Motorhome Lighting, Accent Lighting, or any Low Voltage Project
HIGH QUALITY - 100% Satisfaction Guaranteed.
特記事項
- 新品、並行輸入品です。Brand new parallel imports from the US.
- HEAVY DUTY COMMERCIAL GRADE LED DRIVER 12V DC Constant Voltage Technology
- Designed for outdoor or indoor applications aluminum extruded case with J-Box connector ends
- Certified with UL/cUL 879 for signage applications, UL/cUL 1310 Class 2 for commercial uses
- Weatherproof IP 67 Rated for Dry, Damp and Wet Locations
