Closed End Crimp Cap, Nylon Wire Connector, Tin-Plated Copper Core, CE1, 22-18 Gauge - UL Listed - Pack of 100 [並行輸入品]

商品説明

CLOSED END CRIMP CAPS Are the Industry Standard for Automotive Audio and Power Cable Connectors
The Quickest and Easiest Crimping Wire Connection Terminal, UL and CSA Listed, CQC Certified

??Package bag of 100 count
??Wire combinations: No. 22 thru 18 AWG

PRODUCT FEATURES:

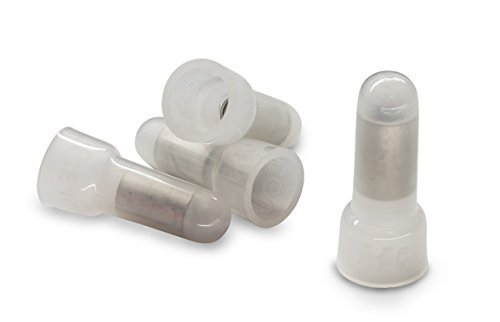

?????Clear Nylon Crimp Cap with Internal Tin-Plated Copper Tube
?????No Pre-Twisting of Conductor is Required
?????Temperature Rated at 221°F (105°C) maximum
?????Fits 22-18 AWG Wire Range: 0.5-1.75mm?
?????Tough, UL 94V-2 Flame Retardant Nylon Shell Polyamide 66 will not crack or break, even when applied to maximum wire combinations under extreme pressure

VOLTAGE RATING: 300V Max.

?????UL and CSA Listed, CQC Certified
?????Overall Dimensions: 0.71'' H x 0.31'' D

This closed end connectors with internal aluminum tube to ensure perfect connections between wires.
Just strip of the wire and insert securely inside the connector crimp by crimping tool.

INSTALLATION INSTRUCTIONS:
 1. Turn off power before installing or removing connectors.
 2. Use stranded copper conductors only when utilize tools AK-25 or MR30A. May use solid or stranded copper conductors when utilize tools #7A or AC-5ND.
 3. Strip wires 0.51 in. (13mm). Max., 0.47 in. (12mm) Min.
 4. Twist wires together along the entire length of strip and insert them into connector.
 5. Center the crimp tool die around the sleeve.
 6. Crimp once using the Lobster AK-25, Die No. 1, or the Muromoto Tekko MR30A, Die No. 1.25, Air Pressure 6 kg/cm2 at least.


HIGH QUALITY - 100% Satisfaction Guaranteed
