Uniweld RV8010 Heavy Duty Single Stage Oxygen Regulator with CGA540 Inlet [並行輸入品]

商品説明

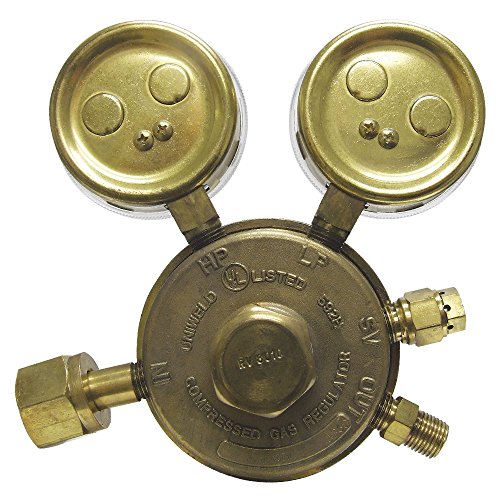

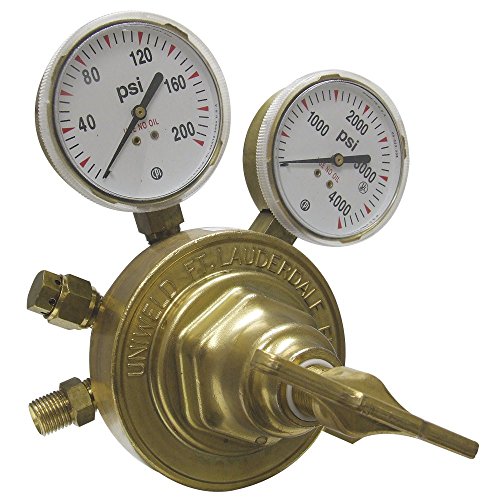

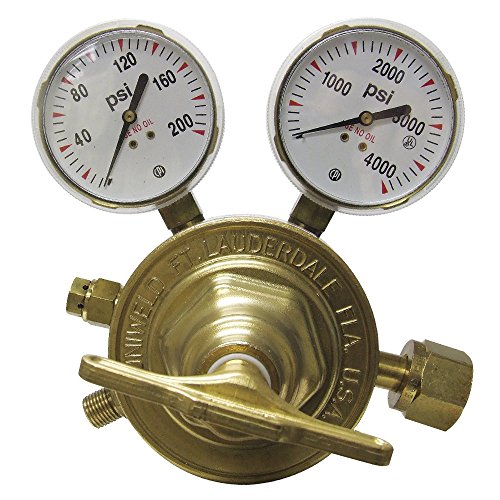

Delivery pressure: 5-125 PSIG. Uniweld's RV8010 is a heavy duty, single stage oxygen regulator with a forged brass body and bonnet and a 3-1/4 inch stainless steel diaphragm. A polished brass, single scale, 2-1/2 inch diameter, 0-4000 PSI Contents Gauge (Part No. G27) and 0-200 PSI Delivery Gauge (Part No. G24) allow you to monitor pressure flowing through the regulator. Additionally, as part of our RV80 series, the RV8010 comes with a removable back plug for fast seat servicing. The RV8010 comes with a CGA540 inlet connection, a "B" Right Hand 9/16 inch -18 Male outlet connection and a delivery pressure of 5-125 PSI. The regulator also includes an externally serviceable pressure relief device (PRD) which protects the regulator. The PRD is not designed to protect the downstream equipment. Uniweld single stage regulators are used for general purpose applications where nominal delivery pressure changes, due to decreasing cylinder pressure, do not affect operations. Single stage regulators have greater flow capacity than two stage models. Made in U. S. A.
