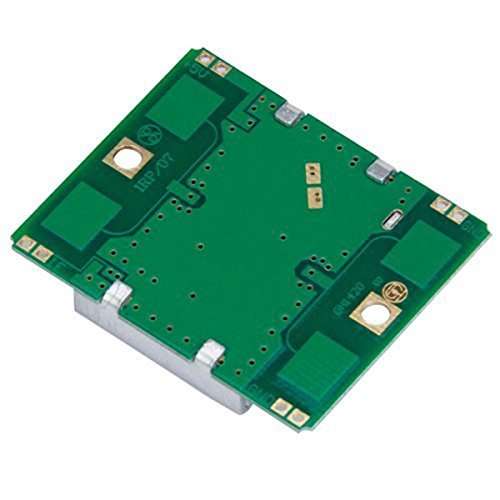

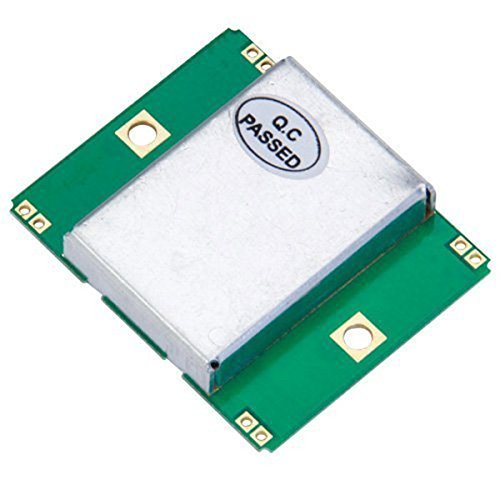

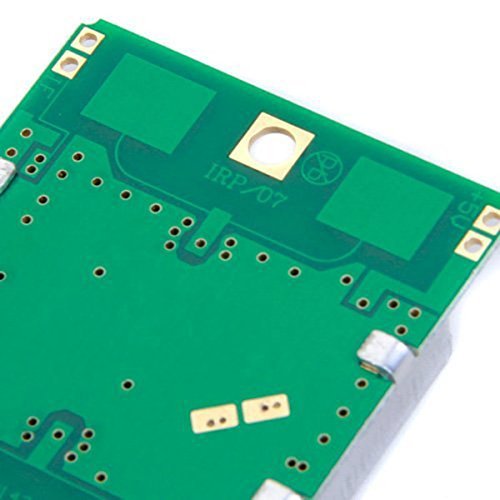

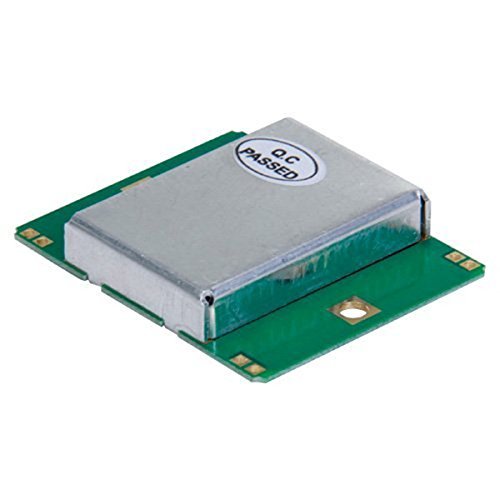

VORCOOL Microwave Motion Movement Wireless Radar Doppler Velocity Sensor [並行輸入品]
- メーカー
- VORCOOL
- JAN
- 0190657045568
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Features
- RF the Microwave Sensor.
- Uses Doppler principle.
- Low cost andamp; Low Power Consumption.
- Pin Type andamp; No Pb free Type(No Rohs).
- Small and Flat Profile.
- High Sensitivity.

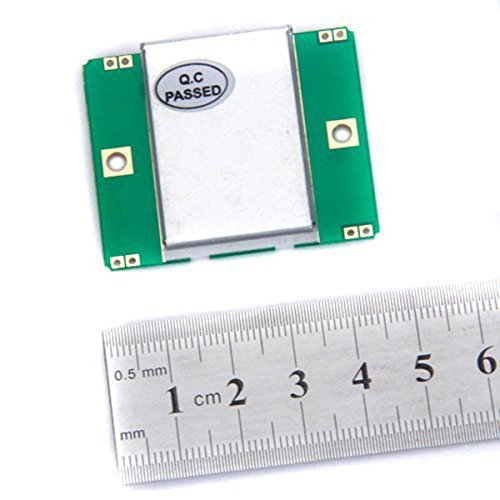

- Dimension : 37*45*8mm.
- Power/Temp. Coefficient: 3dB.
- Frequency/Temp. Coefficient: 6.5MHz.
- Operating Temp: -20 to +55℃.
Applications
- Traffic / express highway watch and control.
- Security relation products (sensor and alarm set etc).
- Automobile rear collision warning.
- Automatic door activation.
- Sensor light.
- Sensors applies in all products which operate.
Transmitter(Standard)
- Frequency : 10.525GHz
- Frequency Setting Accuracy : 3MHz
- Power Output (Min.) : 13dBm EIRP
- Operating Voltage : +5V +/- 0.25V
- Operating Current (CW): 60mA max, 37mA typical
- Harmonic Emissions: -10dBm
Receiver(Standard)
- Sensitivity (10dB S/N ratio) in 3Hz to 80Hz band width : -86dBm
- Noise in 3Hz to 80Hz band width : 10V
- Antenna Gain : 8dBi
- E Plane 3dB Beamwidth : 36'.
- H Plane 3dB Beamwidth: 72'
Package Including
1 * Microwave Motion Movement Wireless Radar Doppler Velocity Sensor
