WINGONEER Waterproof Digital Thermal Probe or Sensor DS18B20 [並行輸入品]

商品説明

WINGONEER? trademark Reg.NO:4747611

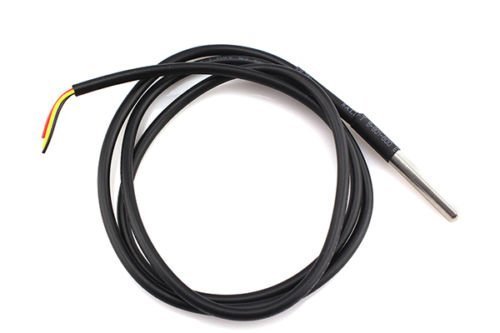

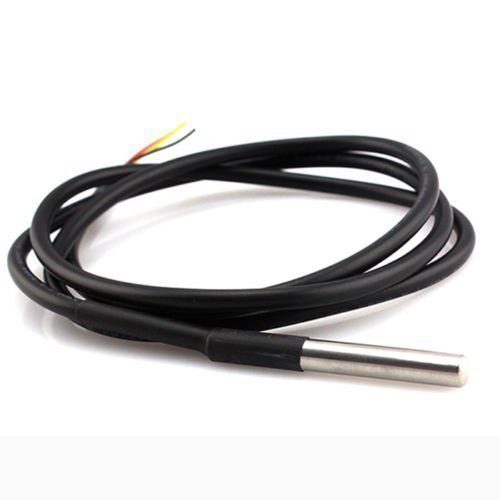

WINGONEER Waterproof Digital Thermal Probe or Sensor DS18B20
1. The detector uses the imported brandnew DS18B20 temperature sensor chip,each pin of which is separated?
by heat shrinkable tube,to prevent short circuit and internal sealing glue,water proof and moisture proof.

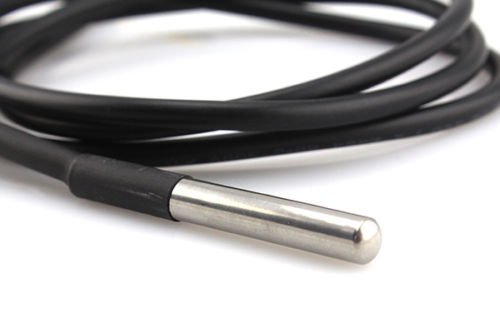

2. High quality stainless steel tube package,water proof,moisture proof and rust proof
3. Each detector is single packaged after strict test.
4. 3.0V - 5.5V power supply
5. 9-12 bits adjustable resolution
6. Temperature-detect range wide -55°C +125°C
7. Need no external components,unique single-bus interface

Output lead wiring:
1. Red wire connected to VCC
2. Yellow/white wire is the data wire,it connected to MCU
3. Black wire connected to GND

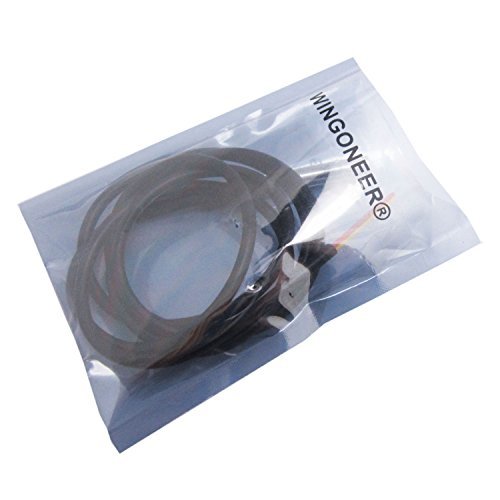

Package:
1x WINGONEER Waterproof Digital Thermal Probe
