WINGONEER HMC5983 Sensor Temperature Compensation 3-Axial Compass SPI Board I2C Module [並行輸入品]
- メーカー
- WINGONEER
- ブランド
- WINGONEER?
- JAN
- 0662578899105
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
WINGONEER? trademark Reg.NO:4747611

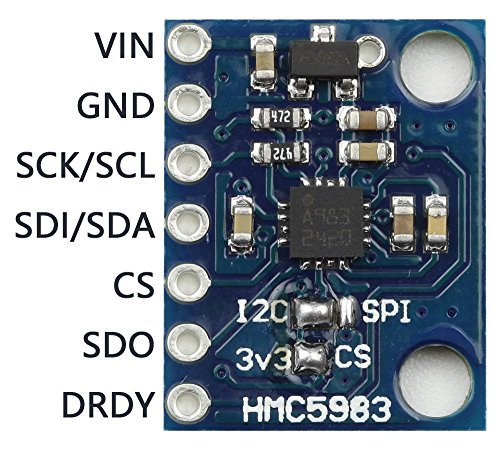

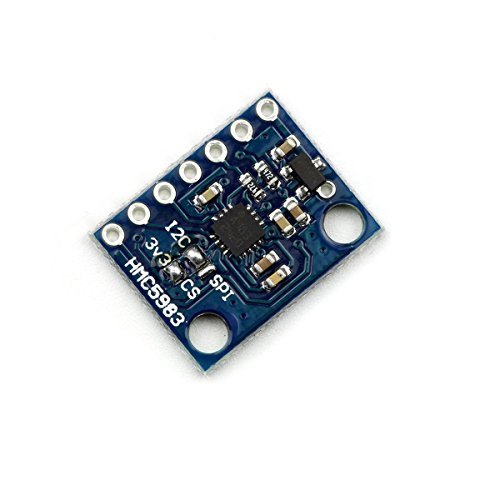

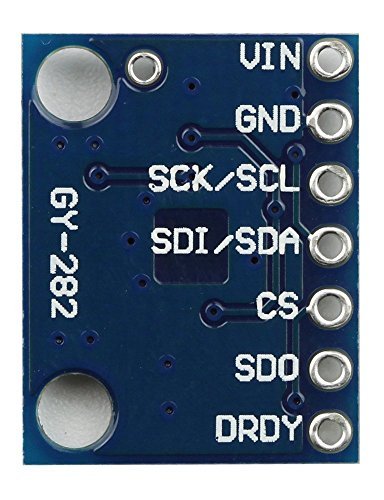

Module Features:
Communication: IIC / SPI optional (default is IIC)
Power supply: 3-5V
Pitch: 2.54mm
PCB size: 14.5mm * 18.5mm
Chip Features:
3-Axis Magnetoresistive Sensors
Temperature Compensated Data Output and Temperature Output
Automatic Offset Compensation
12-Bit ADC Coupled with Low Noise AMR Sensors Achieves 2 milli-gauss Field Resolution
I2C (Standard, Fast, High-Speed modes) or SPI Digital Interface
Fast 220 Hz Maximum Output Rate
Built-in Self Test
Low Voltage Operations (2.16 to 3.6V) and Low Power Consumption (100 uA)
Built-In Strap Drive Circuits
Lead Free Package Construction
Wide Magnetic Field Range (+/-8 Oe)
Software and Algorithm Support Available
Package Included:
1x WINGONEER? HMC5983 Sensor 3-Axial Compass Board
