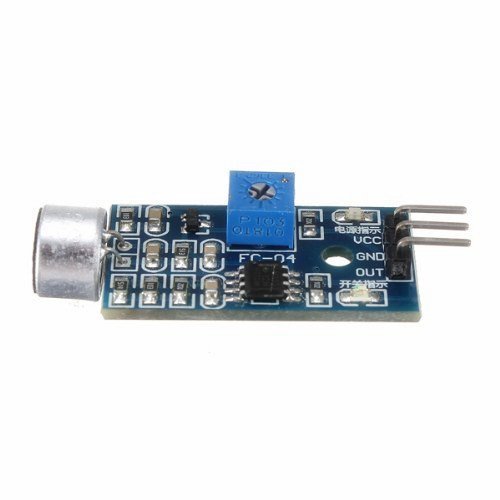

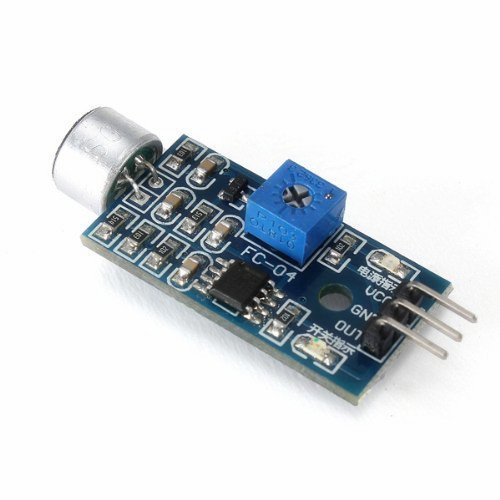

WINGONEER Sensor Module Sound Sensor Intelligent Vehicle supports to Arduino [並行輸入品]

商品説明

WINGONEER? trademark Reg.NO:4747611

Module Features:
1. You can detect the intensity of ambient sound, using Note: This sensor can only recognize the presence or absence of sound (based on vibration principle) does not recognize the size of the sound or specific frequencies of sound
2. Sensitivity adjustable (shown in blue digital potentiometer adjustment)
3. Working Voltage 3.3V-5V
5. Output the form of digital switching output (0 and 1 high-low)

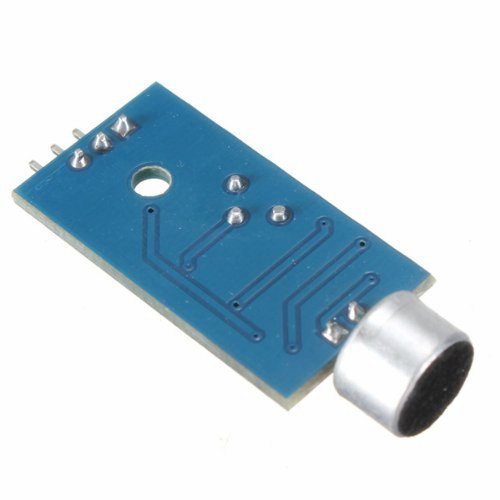

6. A fixed bolt hole for easy installation
7. small PCB board size: 3.2cm * 1.7cm

Module wiring instructions
1.VCC external 3.3V-5V voltage (which can be directly connected with 5v and 3.3v MCU MCU)
2.GND external GND
3.OUT small plates switch output interfaces (0 and 1)

Three instructions
1. The sound module sound intensity most sensitive to the environment, is generally used to detect the intensity of ambient sound.
2. Module not reach the set threshold environmental sound intensity, OUT output high, when the external ambient sound intensity exceeds a set threshold, the module OUT output low;
3. Small board digital output OUT can be directly connected to the microcontroller through the microcontroller to detect high and low, thereby detecting sound environment

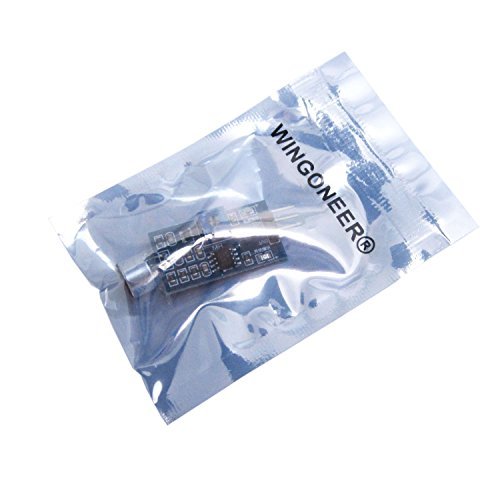

package include:
1x WINGONEER? sound sensor Module
