WINOMO Waveshare Dust Sensor Module Board Air Monitor - Blue [並行輸入品]
- メーカー
- WINOMO
- JAN
- 0190657506519
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Features
- Color: mainly blue.
- Material: durable hard PCB board and metal.

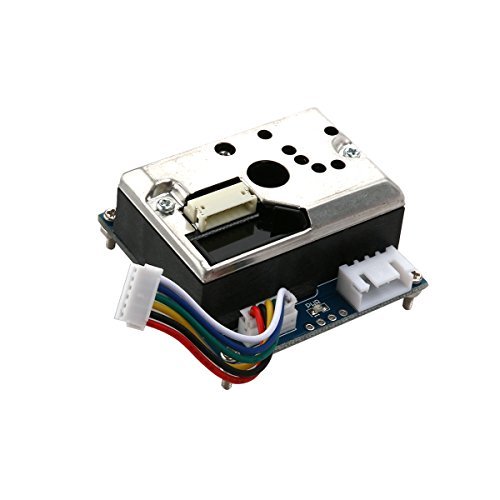

- Sharp GP2Y1010AU0F onboard, detecting fine particle larger than 0.8μm in diameter, even like the cigarette smoke.
- Low power consumption, analog voltage output, the output level is linear with dust density.
- Embedded voltage boost circuit to support wide range of power supply.
- Applications: Air purifier, Air conditioner, Air monitor, PM2.5 Detector.
Specifications
- Sensitivity : 0.5V/(100μg/m3).
- Measurement range : 500μg/m3.
- Power : 2.5V~5.5V.
- Operating current : 20mA(max).
- Operating temperature : -10°C~65°C.
- Storage temperature : -20°C~80°C.
- Life time : 5 years.
- Dimension : 63.2mm×41.3mm×21.1mm.
- Mounting holes size : 2.0mm.
- Air hole size : 9.0mm.

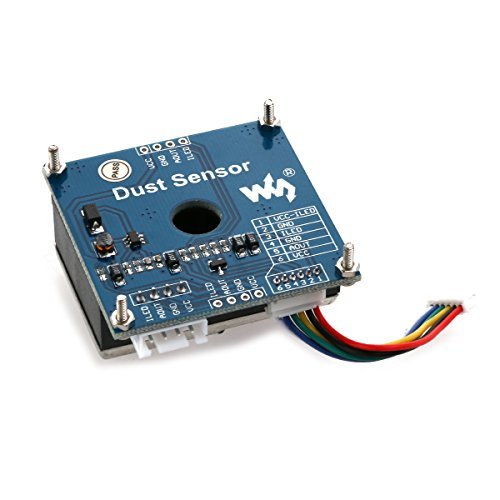

How to Use
In the case of working with a MCU:
VCC ? 2.5V ~ 5.0V
GND ? GND
AOUT ? MCU.IO (analog output)
ILED ? MCU.IO (module driving pin)

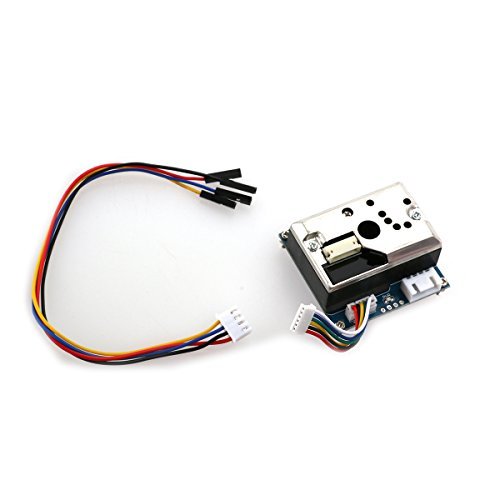

Package Including
1 * Waveshare Dust Sensor Module Board Air Monitor (Blue)

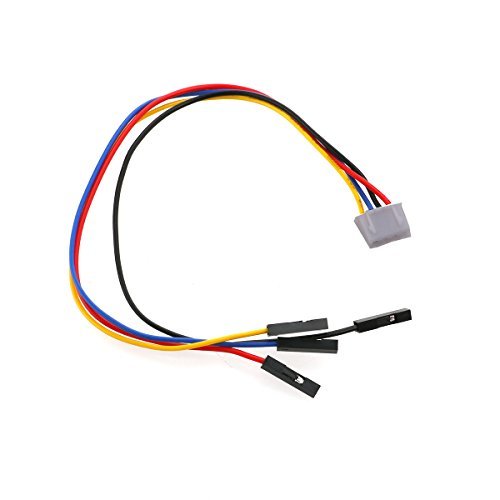

1 * XH2.54 4-pin Wire
