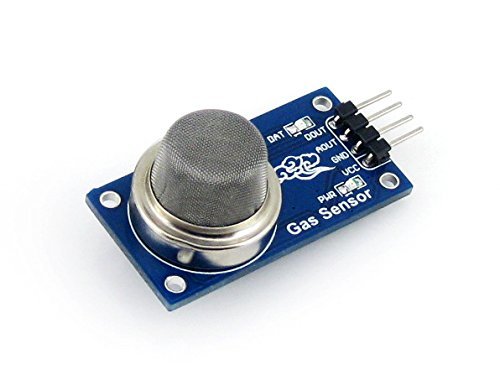

Waveshare MQ135 MQ-135 Gas Sensor Module Alcohol Gas Detection Module Gas Detector for Arduino [並行輸入品]
- メーカー
- WaveShare
- ブランド
- Waveshare-Module
- JAN
- 0799632836520
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

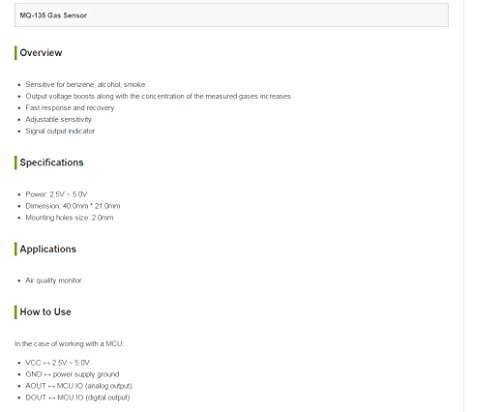

Overview
Sensitive for benzene, alcohol, smoke
Output voltage boosts along with the concentration of the measured gases increases
Fast response and recovery
Adjustable sensitivity
Signal output indicator
Specification
Power: 2.5V ~ 5.0V
Dimension: 40.0mm * 21.0mm
Mounting holes size: 2.0mm
Application
Air quality monitor
How to use
In the case of working with a MCU:
VCC ? 2.5V ~ 5.0V
GND ? power supply ground
AOUT ? MCU.IO (analog output)
DOUT ? MCU.IO (digital output)
