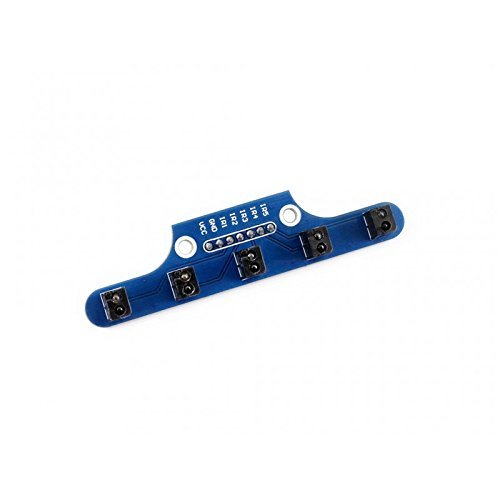

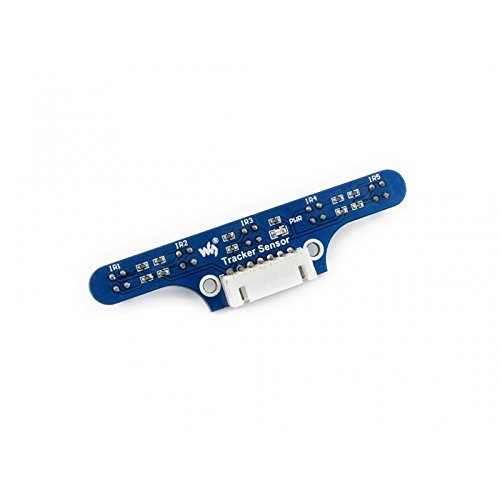

Waveshare Tracker Sensor Module 5-ch ITR20001/T Infrared Detector Robot Infrared Line Tracking Range 1cm to 5cm Power 3.3V to 5V [並行輸入品]

商品説明

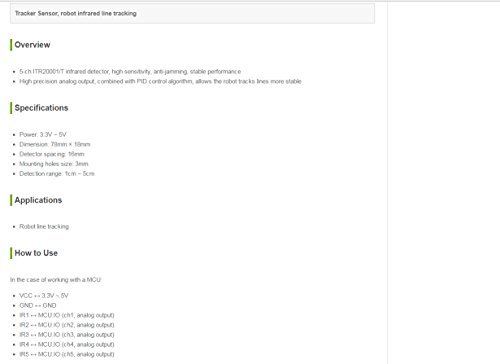

Overview
?
5-ch ITR20001/T infrared detector, high sensitivity, anti-jamming, stable performance
?
High precision analog output, combined with PID control algorithm, allows the robot tracks lines more stable

Specifications
?
Power: 3.3V ~ 5V
?

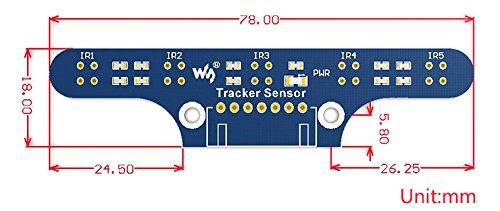

Dimension: 78mm × 18mm
?
Detector spacing: 16mm
?
Mounting holes size: 3mm

Detection range: 1cm ~ 5cm
?
Applications
?

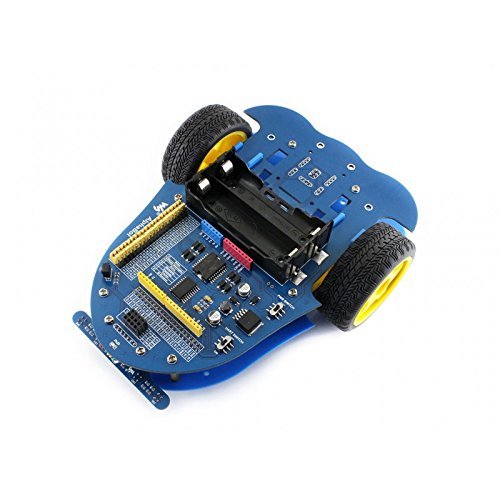

Robot line tracking

How to Use

In the case of working with a MCU:
?
VCC ? 3.3V ~ 5V
?
GND ? GND
?
IR1 ? MCU.IO (ch1, analog output)
?
IR2 ? MCU.IO (ch2, analog output)
?
IR3 ? MCU.IO (ch3, analog output)
?
IR4 ? MCU.IO (ch4, analog output)
?
IR5 ? MCU.IO (ch5, analog output

Development Resources

Wiki : www.waveshare.com/wiki/Tracker_Sensor?amazon

PACKAGE CONTENT

Tracker Sensor x 1

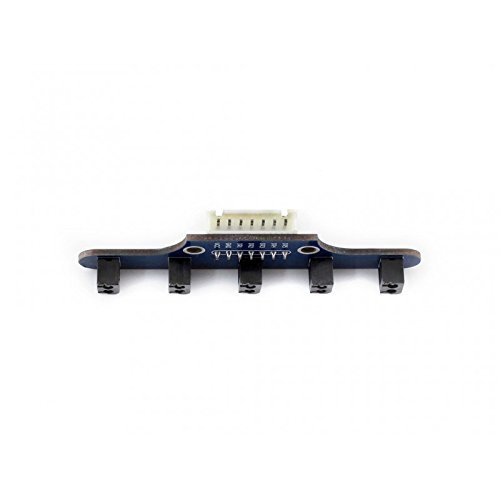

XH2.54 7PIN wire x 1
