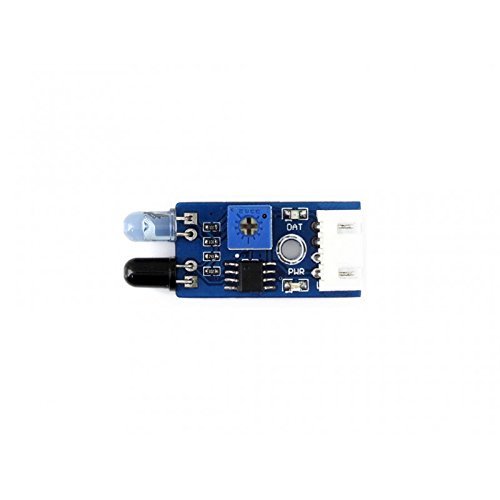

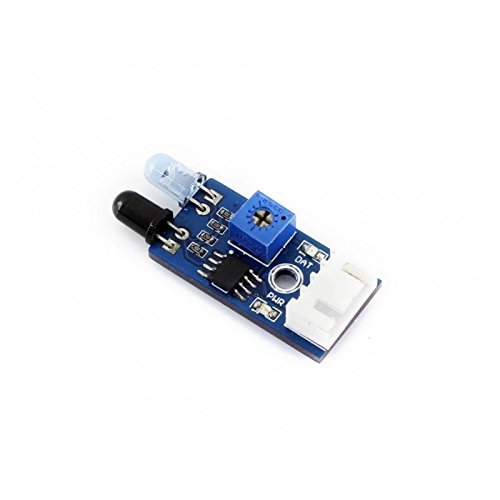

Waveshare Infrared Proximity Sensor Module Robot Obstacle-Avoiding Detector Range 2cm to 30cm Power 3.3V to 5V [並行輸入品]

商品説明

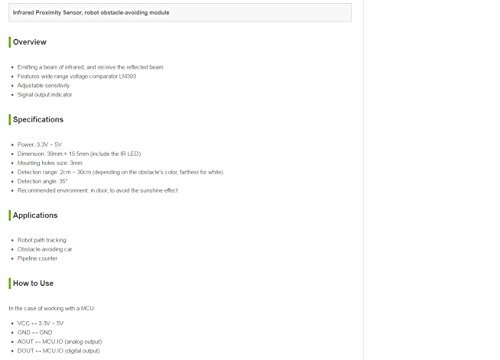

Overview
?
Emitting a beam of infrared, and receive the reflected beam
?
Features wide range voltage comparator LM393

Adjustable sensitivity
?
Signal output indicator
?
Specifications
?
Power: 3.3V ~ 5V
?

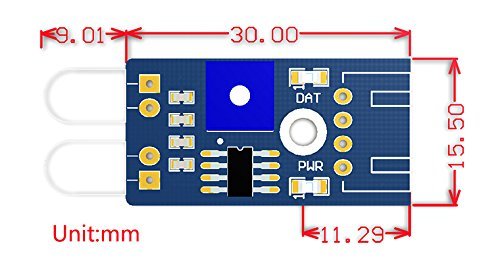

Dimension: 39mm × 15.5mm (include the IR LED)
?
Mounting holes size: 3mm
?
Detection range: 2cm ~ 30cm (depending on the obstacle's color, farthest for white)
?
Detection angle: 35°
?
Recommended environment: in door, to avoid the sunshine effect
? ?
Applications
?
Robot path tracking

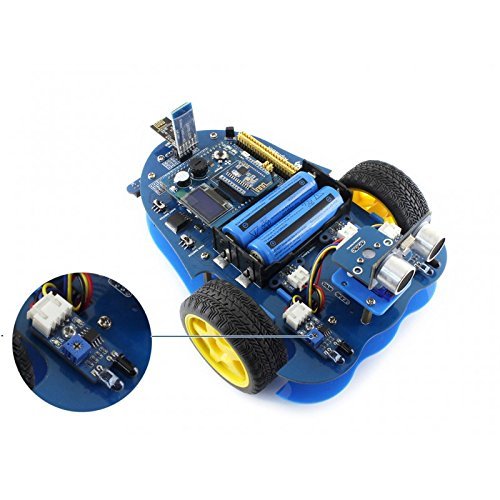

Obstacle-avoiding car>/br>
Pipeline counter

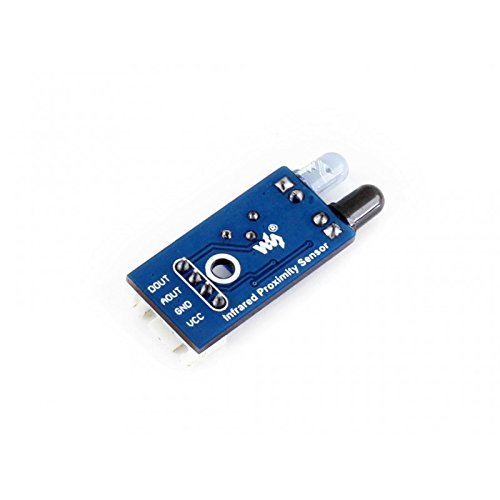

How to Use

In the case of working with a MCU:
?
VCC ? 3.3V ~ 5V
?
GND ? GND
?
AOUT ? MCU.IO (analog output)
?
DOUT ? MCU.IO (digital output)

Development Resources

Wiki : www.waveshare.com/wiki/Infrared_Proximity_Sensor?amazon

PACKAGE CONTENT
1.
Infrared Proximity Sensor x 1
1.

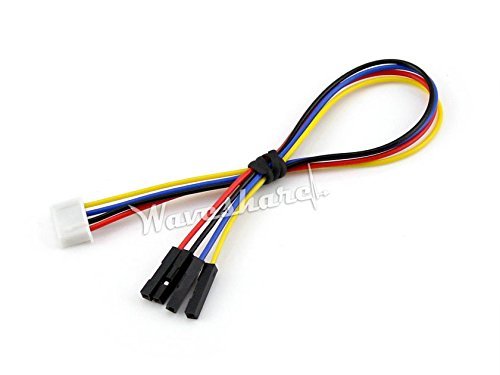

XH2.54 4PIN wire x 1
