110 PCS Heat Shrink Butt Connectors Solder Seal Insulated Electrical Terminals Waterproof Automotive Marine [並行輸入品]
- メーカー
- Wirefy
- JAN
- 0741498317101
- メーカー品番
- HXT110
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
SPECIFICATIONS:
--Shrinkage ratio 2:1

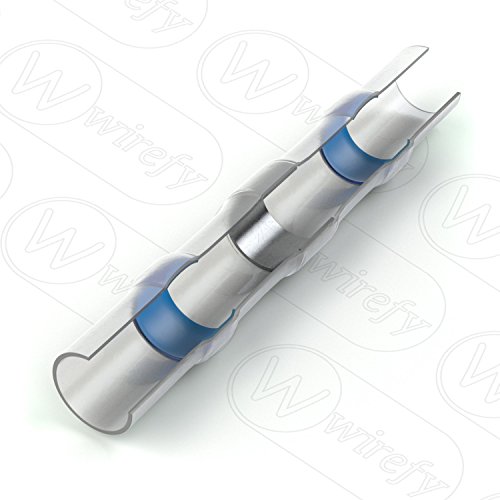

--Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive inside
--Color coded?connector tubing
--Wirefy heat shrink connectors are compliant with ROHS, ISO 9001:2008, SGS and CE standards.
--Minimum shrink temperature: 80°C
--No wire damage due to lower shrink temperature
--Minimum temperature for solder to melt: 138°C

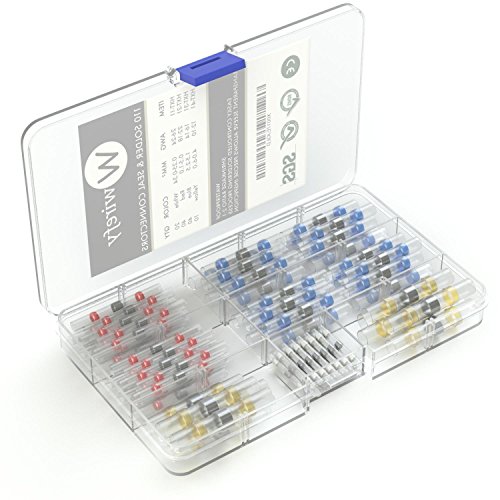

--Reusable case included

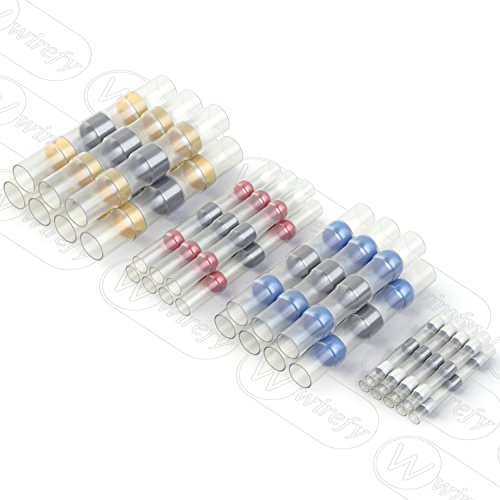

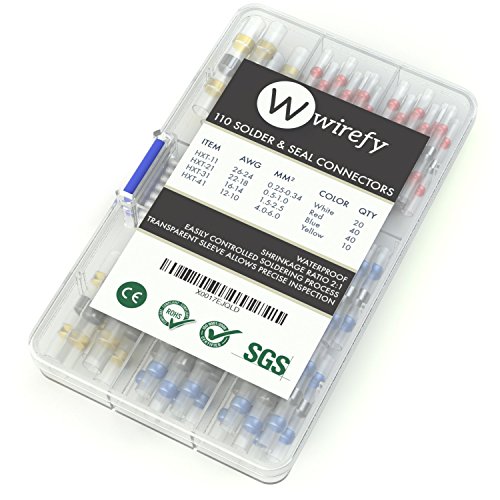

110 SOLDER & SEAL?HEAT SHRINK CONNECTOR KIT INCLUDES:

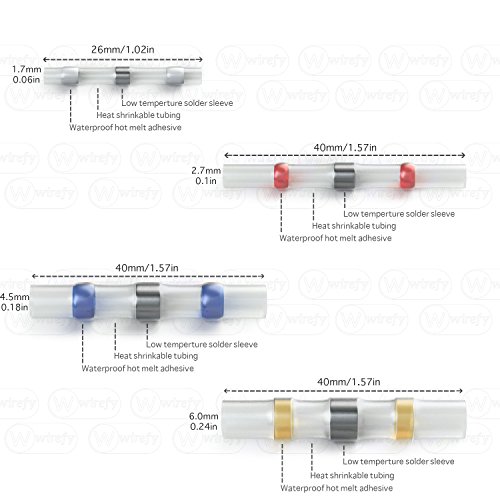

ITEM #? ? ?AWG ? ? ?MM2 ? ? ? ? ? ?COLOR ? ? ?QTY ?
HXT-11 ? ? 26-24 ? ? 0.25-0.34 ? ? ?White ? ? ? ? 20
HXT-11 ? ? 22-18 ? ? 0.5-1.0 ? ? ? ? ?Red ? ? ? ? ? ?40
HXT-11 ? ? 16-14 ? ? 1.5-2.5 ? ? ? ? ?Blue ? ? ? ? ? 40
HXT-11 ? ? 12-10? ? ?4.0-6.0 ? ? ? ? ?Yellow ? ? ? ?10
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Total Quantity 110?PCS
特記事項
- 新品、並行輸入品です。Brand new parallel imports from the US.

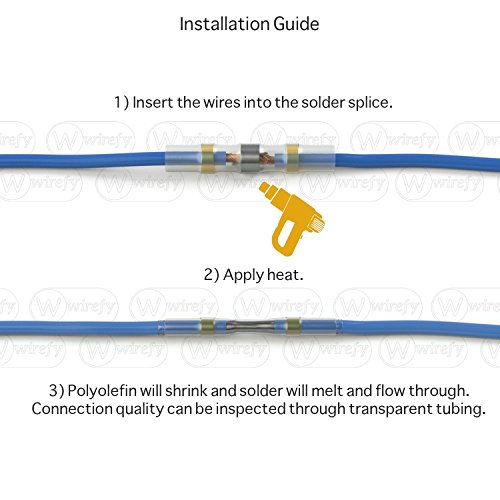

- FAST AND EASY PROCESS - 1 Step solder and seal process for all your connections
- WATERPROOF - Insulation tubing has unique dual-walled design: polyolefin tubing on the outside and hot melt adhesive inside. When heat is applied, polyolefin tubing reduces in size and adhesive flows inside the insulation. Dual walled tubing ensures waterproof seal and prevents wire corrosion

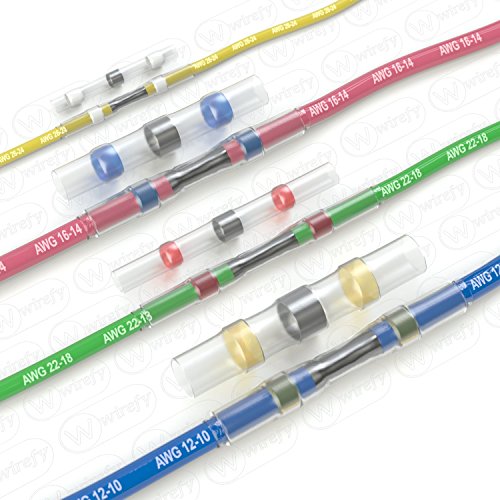

- EASY IDENTIFICATION - Color-coded tubing makes it easy to identify the right size of the connector for every application. Measure your wire, and easily choose the right connector by looking at wire size chart on the box.
- COMPLIANT WITH ALL RELEVANT STANDARDS - Our heat shrink connectors are compliant with ROHS, ISO 9001:2008, SGS and CE standards.
