XINY MPU-9250 9DOF Module Nine-axis Attitude Gyro Compass Acceleration Magnetic Field Sensor Three-axis gyroscope Triaxial accelerometer Triaxial magnetic field [並行輸入品]
- メーカー
- XINY
- JAN
- 0713653007349
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

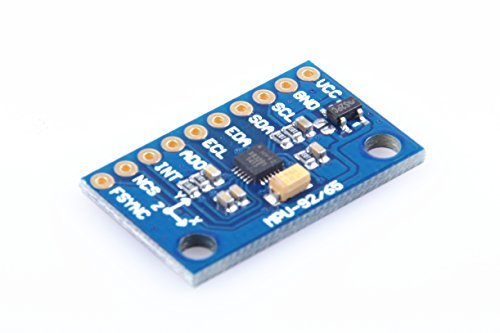

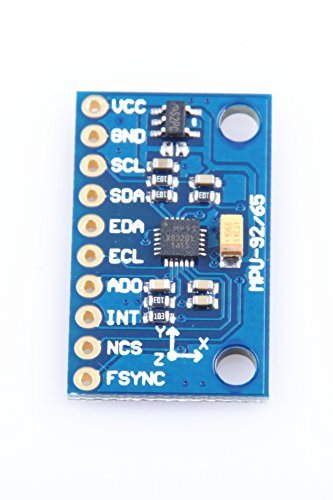

MPU9250 module (three-axis gyroscope + triaxial accelerometer + triaxial magnetic field).
Power supply: 3-5v (internal low dropout regulator).
Communication: standard IIC / SPI communication protocol.
Built-in 16bit AD converter chip, 16-bit data output.
Gyroscope range: ± 250 500 1000 2000 ° / s. Acceleration Range: ± 2 ± 4 ± 8 ± 16g. Magnetic field range: + 4800uT.
Module Model: GY-9250.
Use chip: MPU-9250.
Power supply: 3-5v (internal low dropout regulator).
Communication: standard IIC / SPI communication protocol.
Built-in 16bit AD converter chip, 16-bit data output.
Gyroscope range: ± 250 500 1000 2000 ° / s.
Acceleration Range: ± 2 ± 4 ± 8 ± 16g.
Magnetic field range: + 4800uT.
Using Immersion Gold PCB, machine welding process to ensure quality.

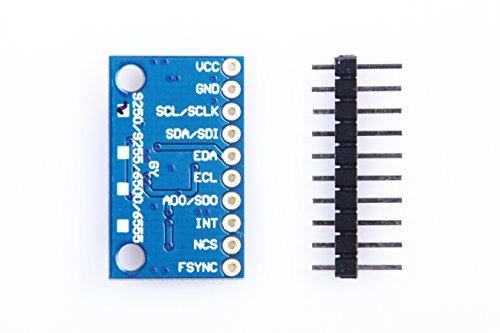

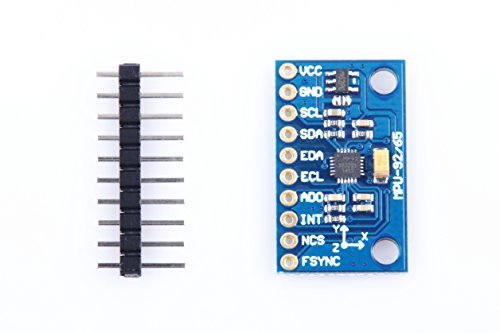

Pin spacing 2.54mm.
Module size 15mm * 25mm.
. Weight:2.0g.
