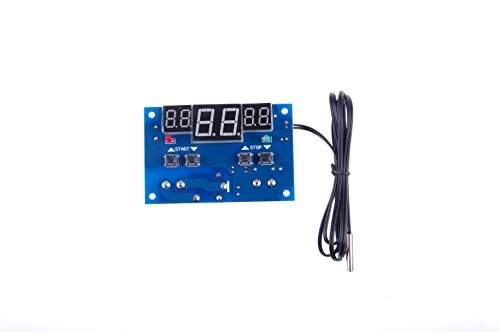

XINY Digital Thermostat DC 12V -9 to 99℃ Temperature Controller Board Electronic Temperature Temp Control Module Switch with 10A One-channel Relay and Waterproof Sensor Probe [並行輸入品]
- メーカー
- XINY
- JAN
- 0713653009107
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Temperature range: -9 ~ 99 ℃
Temperature measurement accuracy: 1 ℃
Control accuracy: 1 ℃ Range: -9 ~ 99 ℃
Refresh rate: 0.5S

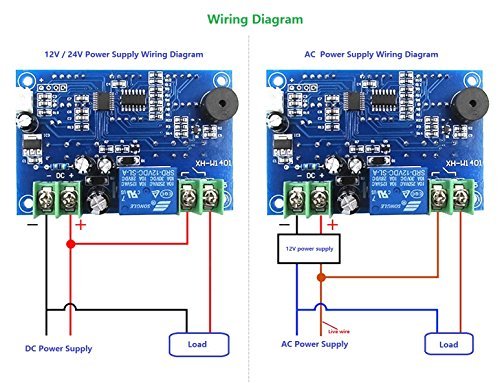

Input power: DC12V / 24V

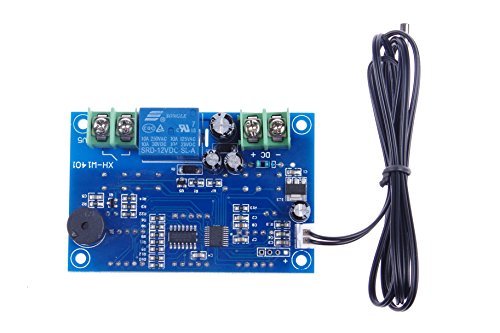

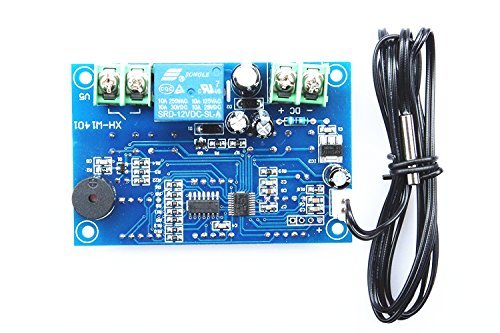

Measuring input: NTC (3950-10K 1%) waterproof sensor
Output: relay output, capacity 220V10A / 12V 10A
Environmental requirements: -10 ~ 60 ℃
Humidity 20% to 85%
Weight:49g / 1.7 oz
Size: 79 * 52 * 25 mm / 3.08 * 2.02 * 0.97 in(L * W * H)

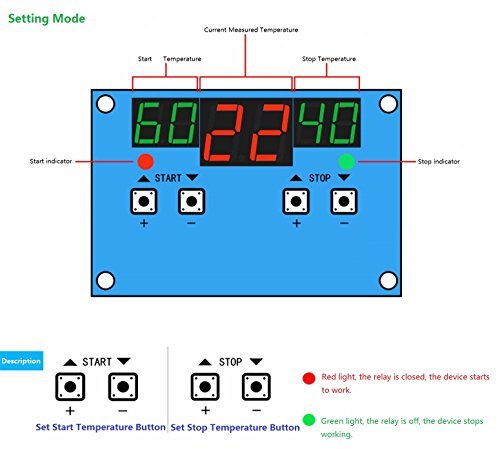

Lights, digital control, key state Description: Start indicator: START (red) indicator light, said the relay is closed, the machine starts to work.
Stop lights: STOP (green) indicates the relay off, the device stops working. Digital: middle red LED display current temperature detected, the left green LED to set the start temperature, the green LED on the right to set the stop temperature.
