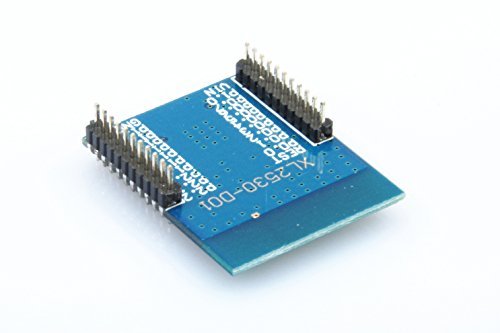

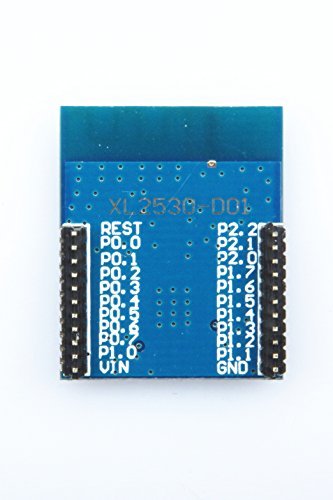

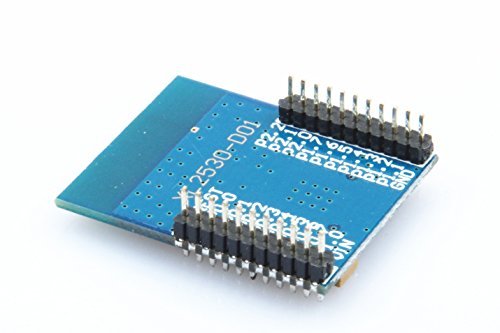

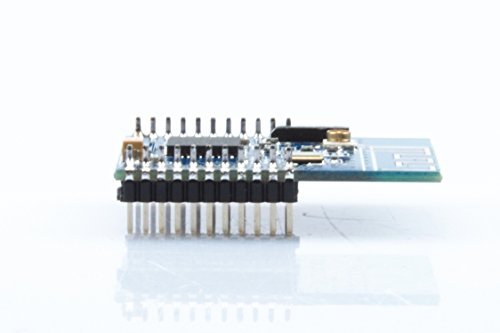

XINY XL2530-D01 wireless module CC2530F256 wireless module ZIGBEE wireless module wsn wireless sensor networks RF4CE [並行輸入品]

商品説明

Transmitting power: 2.5kW (4 dBm)
Receiving sensitivity: -97dBm (BER = 10-2)
Carrier frequency: 2.4GHz
Number of Channels: 16
Power: receive current ?27mA, emission current ?40mA
Weight:2g / 0.07oz

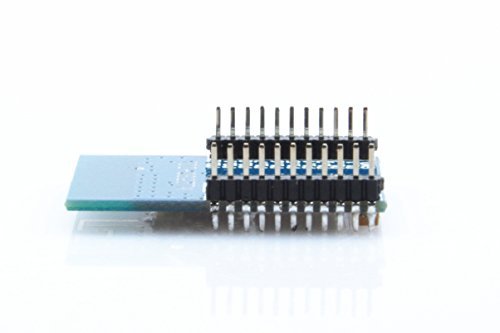

Size: 26 * 21 * 7.2 mm / 1.03 * 0.81 * 0.0.28 in(L * W * H)

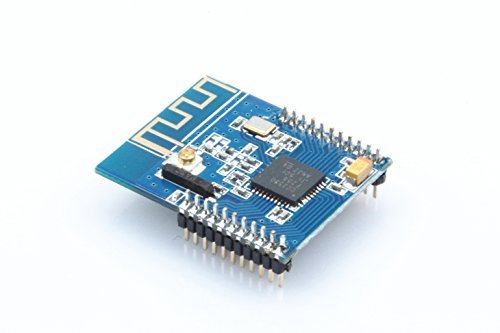

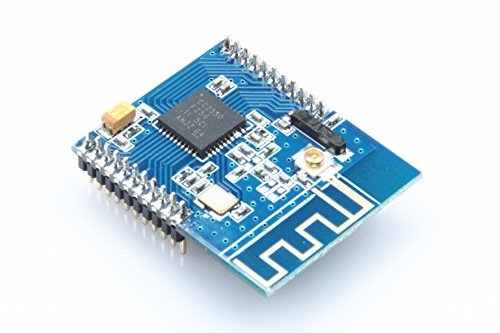

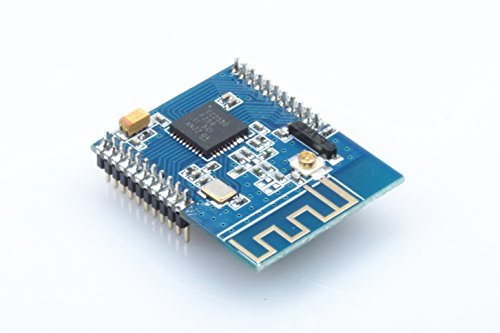

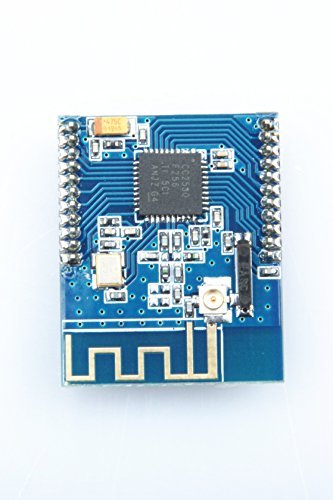

Chips made using CC2530F256.
It offers 16 channels, automatically selected according to reliable channel of communication environment.
Transmit power 2.5mW (4dBm), the receiving sensitivity of -97dBm (BER = 10-2) opening band, no need to apply frequency, carrier frequency 2.4GHz.
High anti-interference ability and low error rate, air transmission rate of up to 250kbps. The range of visibility, the reliable transmission distance up to 100 meters (PCB antenna), but also by IPEX interface to an external high-gain antenna on the module that determines the distance from the antenna gain, the gain doubled in size, distance doubled.
Power: receive current ?27mA, emission current ?40mA. Small size and light weight. Using SoC, peripheral circuits, high reliability, and low failure rate. 2.4GHz IEEE 802.15.4 protocol and adapt ZigBee applications automatic networking.
Applications:
Family intelligent control, wireless meter reading Industrial remote control, telemetry, automated data collection systems security, alarm, hotels, room equipment, wireless monitoring, access control systems, personnel positioning
