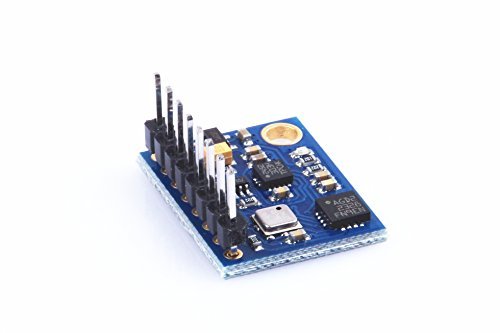

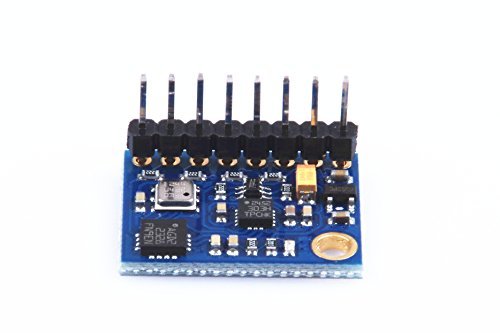

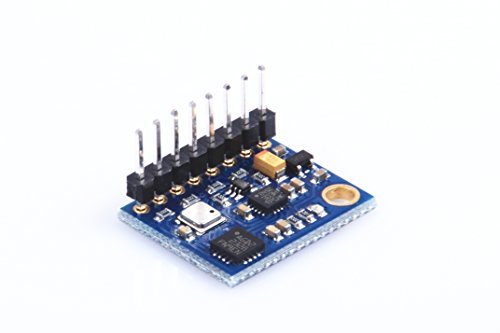

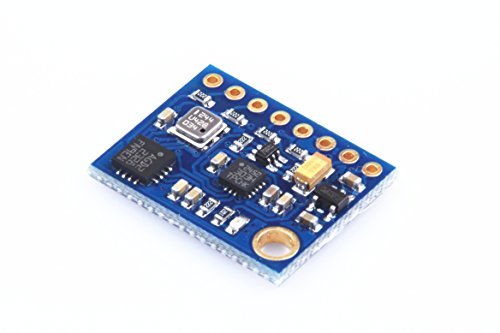

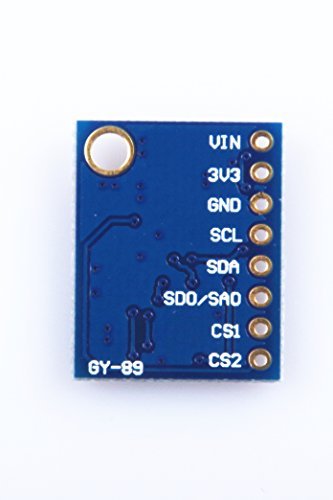

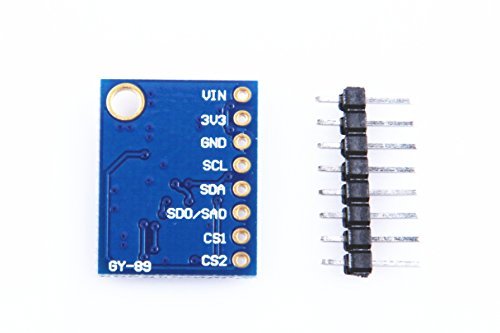

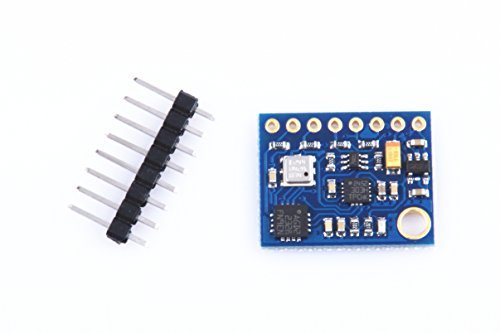

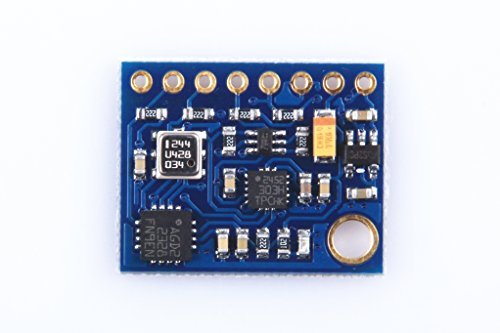

XINY GY-89 10DOF LSM303D + L3GD20 + BMP180 barometric pressure sensor module Three-axis gyroscope + triaxial accelerometer + three-axis magnetic field + pressure [並行輸入品]
- メーカー
- XINY
- JAN
- 0602258894648
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Dimensions: 22 mm × 17 mm.
Weight without header pins: 1 g .
Operating voltage: 2.5 V to 5.5 V.
Supply current: 8mA.
Output format (I2C/SPI):
Gyro: one 16-bit reading per axis.
Accelerometer: one 16-bit reading per axis.
Magnetometer: one 16-bit reading per axis.
Barometer: 24-bit pressure reading (I2C only).
Sensitivity range:
Gyro: ±245, ±500, or ±2000°/s.
Accelerometer: ±2, ±4, ±6, ±8, or ±16 g.
Magnetometer: ±2, ±4, ±8, or ±12 gauss.
Barometer: 300hPato 1110hPa.
