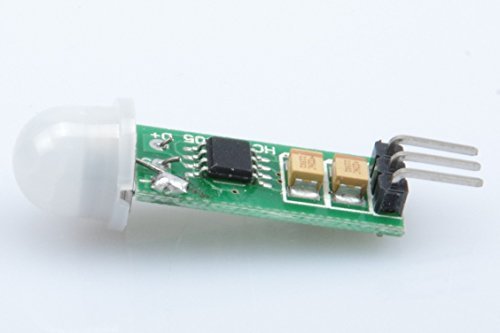

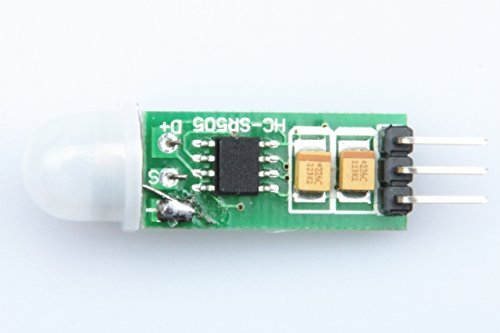

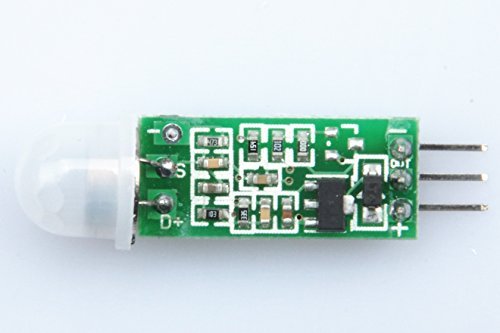

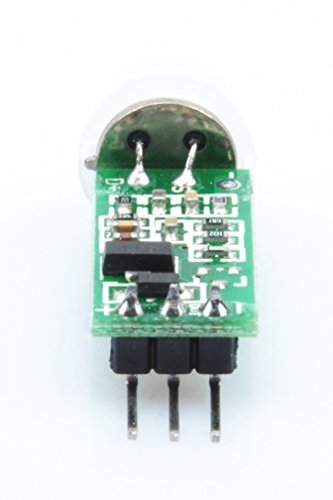

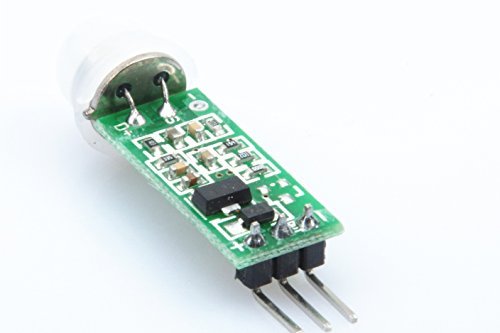

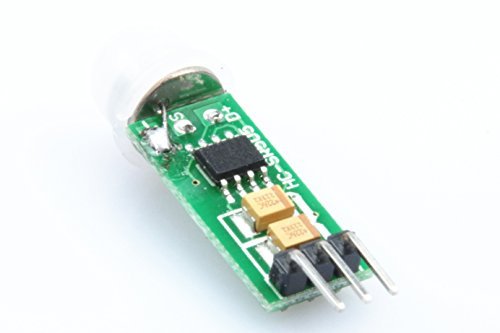

XINY HC-SR505 mini body sensor module mini-body sensor switch the body sensor module [並行輸入品]

商品説明

HC-SR505 small body sensor module is based on infrared technology, automatic control products, high sensitivity, reliability, ultra-small size, ultra-low voltage operation mode. Widely used in various auto-sensing electrical equipment, especially battery-powered automatic control products.
Automatic induction: to enter its sensing range, the output high, people left the sensing range is automatically shut down delay high and low output.
Ultra-small size.
Wide operating voltage range: the default working voltage DC4.5V-20V.
Micro-power: quiescent current of <50 microamps, especially for battery-powered automatic control products.It outputs a high level signal: easy docking with the various types of circuits.
Induction angle: <100 degree cone angle
Induction distance: 3 meters
Working temperature: -20 ~ +80 ℃
Sensor Lens Dimensions: Diameter 10mm
Size:40mm * 10mm * 12mm / 1.58 * 0.4 * 0.47in(L * W * H)
Weight:2.7g / 0.1oz

Ultra-small size.
Wide operating voltage range: the default working voltage DC4.5V-20V.
Micro-power: quiescent current of <50 microamps, especially for battery-powered automatic control products.
It outputs a high level signal: easy docking with the various types of circuits.
Repeatable trigger: the sensor output high, the delay period, if there is human activity in its sensing range, the output will remain high until after the delay to leave the high variant low (will be automatically extended after a sensor module detects the human body every activity a delay time period, and the final event of the time as the starting point delay time).
Applications:Body induction lamps, body sensor toys, security products, industrial automation and control, auto-sensing electrical equipment, battery-powered automatic control.
