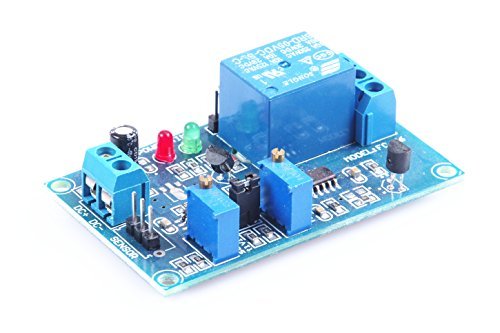

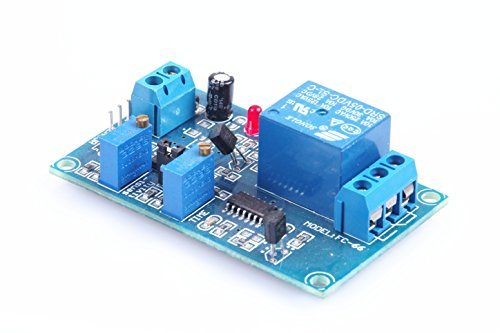

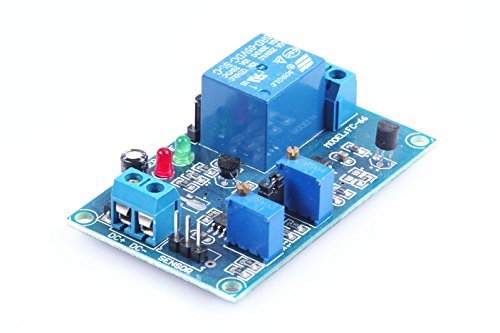

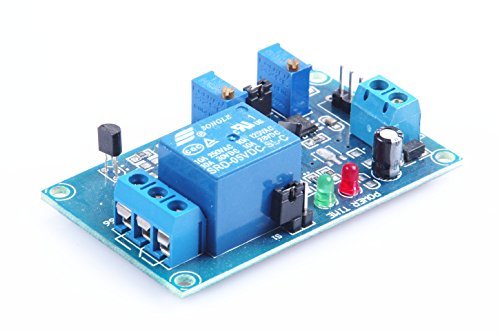

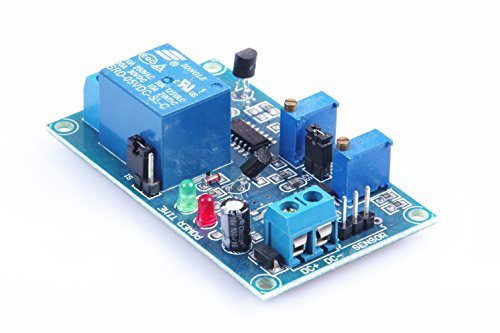

XINY SRD-05VDC-SL-C DC5V TCRT5000 infrared photoelectric sensor relay module Optical delay module Matt version Non-reflective trigger Adjustable delay [並行輸入品]

商品説明

Module power supply: DC5V.
Quiescent Current: 12mA.
Maximum power consumption: 72mA.
Relay load capacity: AC 250V 10A / DC 30V 10A.
Ambient temperature: <80 degrees.
Delay Range: 1-20 seconds adjustable delay S2 plugged, unplugged S2,1-200 seconds adjustable.
Reflection distance: 0-3cm adjustable induction.
Module size: 63.5x38.5x18.5mm.
Pitch: 58.5 * 33.5mm.
Aperture: 3.1mm.
Module Weight: 30.5g.
(This product has 5V, 12V, 24V three models to choose )
Product Usage:

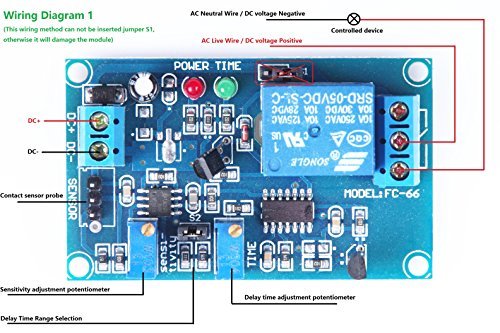

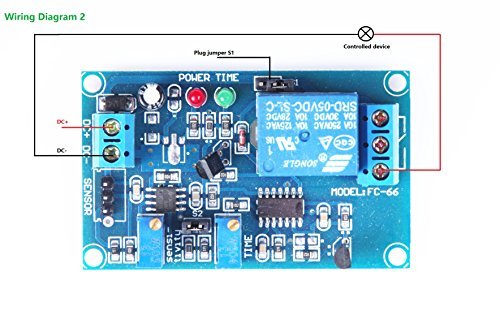

1. Connect DC power supplies, sensors and properly connected, the reference image;
2. The common terminal of the relay, normally open, normally closed terminal is no voltage output, many people think that the two lines direct public side and the normally open device can be, actually will not work, just a big relay current switch, when no relay pulls in, the common terminal and the normally closed terminal is turned on, pulls in, the common and normally open, the relay is used to control the device one of the lines on or off;
3. When the sensor tip obstructions reflection, the relay does not pull, without reflection, relay;
4. The method of adjusting the distance of the reflection, there are obstacles in the sensor is adjusted with a screwdriver to adjust the potentiometer board, so that the green indicator light is never just to highlight, and then come back transferred is not lit, at this time if there is no obstacle the relay will pull clockwise adjustment, the sensing distance will be shorter and shorter.
5. The method of adjusting the delay time: when clockwise adjustment, delay longer.
Shipping list:

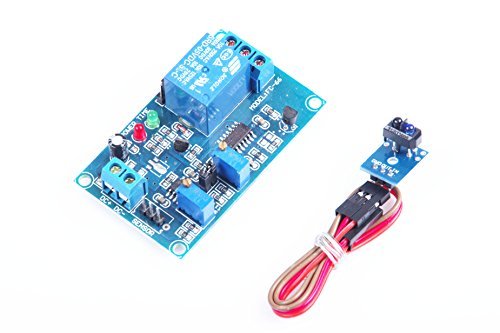

Infrared sensors headband sensor tube length 20CM DuPont line 1 set, a control board.
