Infrared LED Light-sensing Board (B) Camera Module for Raspberry Pi Night Vision @XYG [並行輸入品]

商品説明

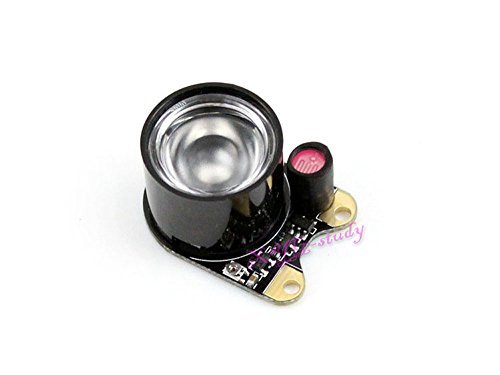

Light-sensing Infrared LED Board

Features

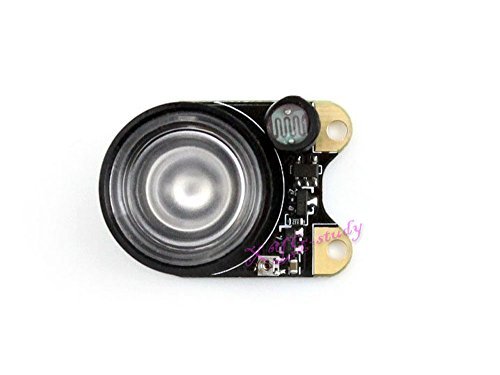

Onboard photoresistor, the ambient light detector
Onboard adjustable resistor, for controlling the ambient light threshold of toggling the infrared LED

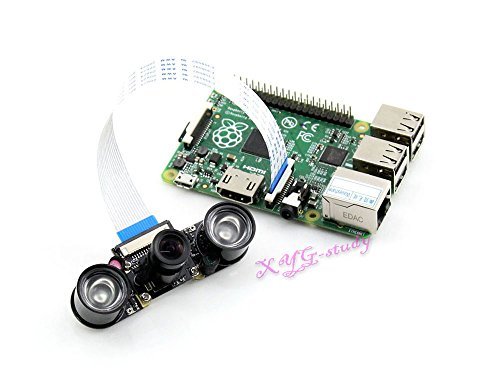

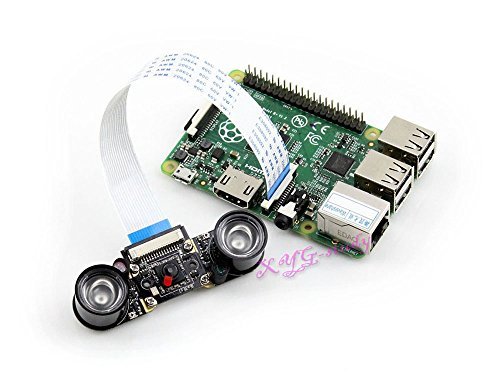

Allows adding night vision function to RPi Camera (H) (140 degree field of view, where the RPi Camera (H) features 160 degree, hence, 2 pieces of this item is required)

How to Use
1, Connect the Infrared LED Board to the camera PCB by screws

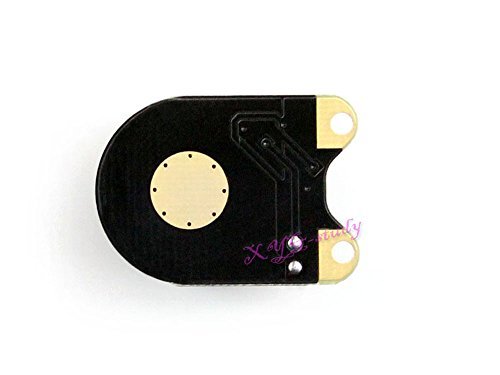

** The screw holes are used for both attachment and power supply
2, Adjust the adjustable resistor to set a proper ambient light threshold, which toggles the infrared LED automatically
** When ambient light is lower than threshold value, the infrared LED is on, vice versa
Note:
Limited by the Raspberry Pi power supply, the 3W high-power infrared LED might cause the Pi to increase heating, heat sinks are suggested.
Ideal imaging distance is within 3m. When the distance goes up to 6m, the night vision camera can just capture blurry outlines.

Package Contains:
Infrared LED Board (B) × 1 ( Only 1 LED is included, it's recommended to buy 2 pieces when using with Raspberry Pi cameras, both the left and right sides)
Screws × 2
