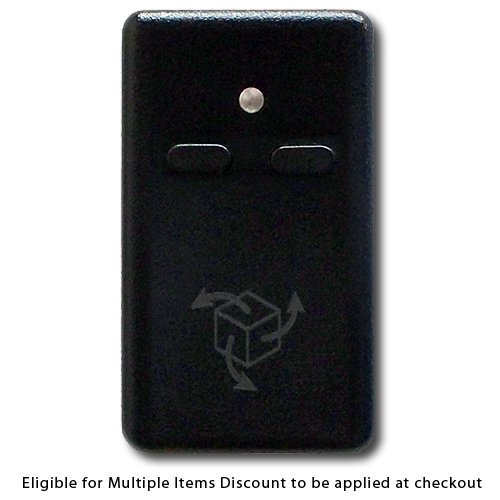

YEI 3-Space Sensor 3-axis 9DOF 4.5GHz DSSS Wireless Miniature IMU / AHRS (Handheld case) (TSS-WL) [並行輸入品]

商品説明

The YEI 3-Space SensorTM Wireless integrates a miniature, high-precision, high-reliability, Attitude and Heading Reference System (AHRS) / Inertial Measurement Unit (IMU) with a 2.4GHz DSSS communication interface and a rechargeable lithium-polymer battery solution into a single low-cost end-use-ready unit. The Attitude and Heading Reference System (AHRS) / Inertial Measurement Unit (IMU) uses triaxial gyroscope, accelerometer, and compass sensors in conjunction with advanced processing and on-board quaternion-based Kalman filtering algorithms to determine orientation relative to an absolute reference in real-time. Orientation can be returned in absolute terms or relative to a designated reference orientation. The proprietary multireference vector mode increases accuracy and greatly reduces and compensates for sensor error. The YEI 3-Space Sensor Wireless system also utilizes a dynamic sensor confidence algorithm that ensures optimal accuracy and precision across a wide range of operating conditions. The YEI 3-Space Sensor Wireless unit features are accessible via a well-documented open communication protocol that allows access to all available sensor data and configuration parameters using either 2.4GHz DSSS wireless or USB 2.0 interfaces. Versatile commands allow access to raw sensor data, normalized sensor data, and filtered absolute and relative orientation outputs in multiple formats including: quaternion, Euler angles (pitch/roll/yaw), rotation matrix, axis angle, two vector(forward/up). Multiple Item Discount Available: Buy 2 items get $5.00 off, Buy 3 items get $15.00 off, Buy 4 items get $25.00 off, Buy 5 items get $34.00 off, Buy 6 items get $44.00 off, Buy 7 items get $52.00 off, Buy 8 items get $62.00 off, Buy 9 items get $71.00 off, Buy 10 items get $81.00 off
