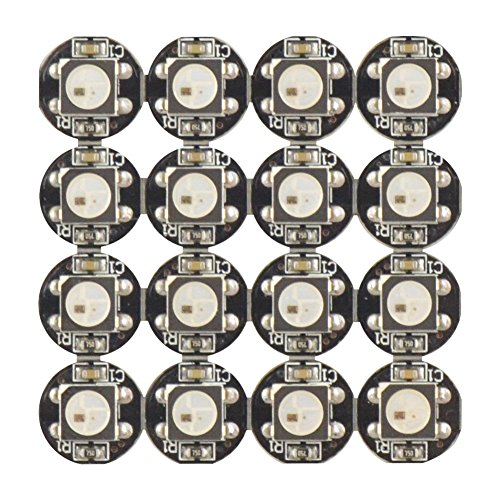

Yaqing Lighting 100pcs 4-Pin WS2812B WS2812 LED Chip & Heatsink(10mm3mm) DC5V WS2811 IC Built-in 5050 SMD RGB Chips (Black Version) [並行輸入品]

商品説明

Full color, can be adjusted by the controller as follows: white, red, yellow, blue, green, etc.. Product Features:
1. Intelligent reverse connect protection, the power supply reverse connection does not damage the IC.
2.The control circuit and the LED share the only power source.
3.Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.
4. Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
5.Built-in electric reset circuit and power lost reset circuit.
6.Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s.
7.Cascading port transmission signal by single line.
8.Any two point the distance more than 5m transmission signal without any increase circuit.
9.When the refresh rate is 30fps, cascade number are not less than1024 points.
10.Send data at speeds of 800Kbps.
11.The color of the light were highly consistent, cost-effective..

Parameter:

Model: WS2812 pixel board

Light source: SMD 5050 RGB

Plate: aluminum plate

IC Model: WS2812B

The gray level: 256

Beam angle: 120 °

Color: full color, can be adjusted by the controller as follows: white, red, yellow, blue, green, etc.

The standard operating voltage: DC 5V

Power: 0.3W ± 0.01%

Waterproof: not waterproof

FPCB board size: Width: 10 mm, thickness: 3mm

FPCB board color: Black

Kindly Note:

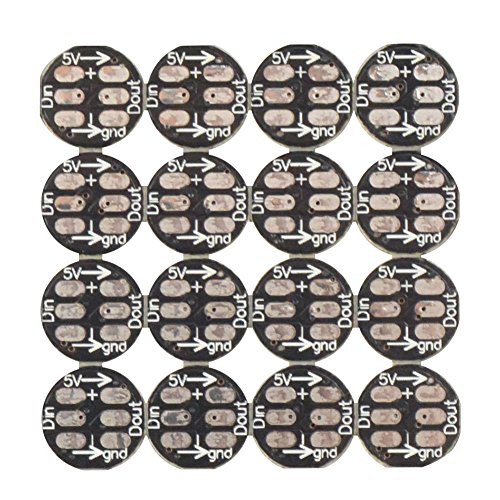

None of the LEDS are connected through the PCB. So you need to solder them based on your requirement. There are 6 solder points on the back of LEDs.

Package include:

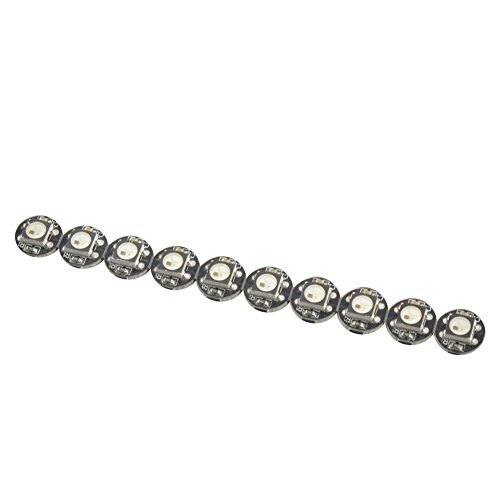

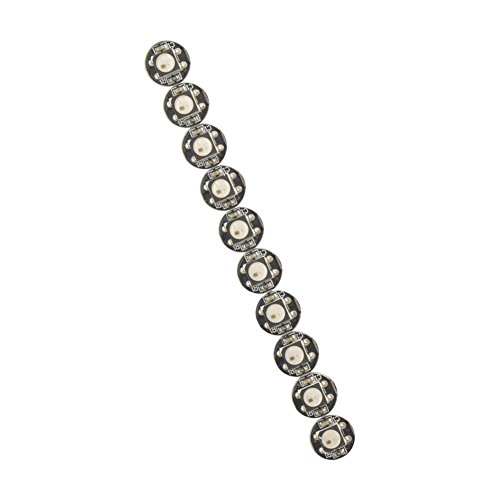

100pcs WS2812B Chips With Black PCB Heatsink
