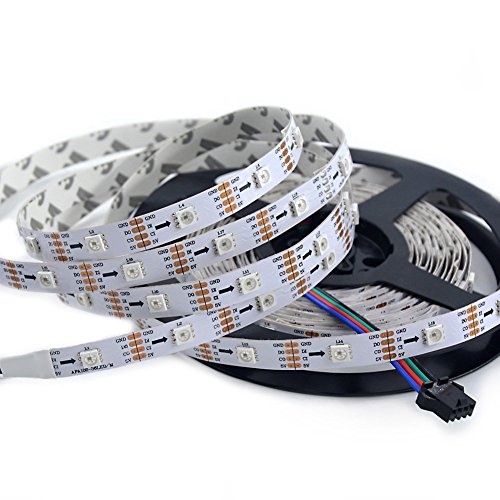

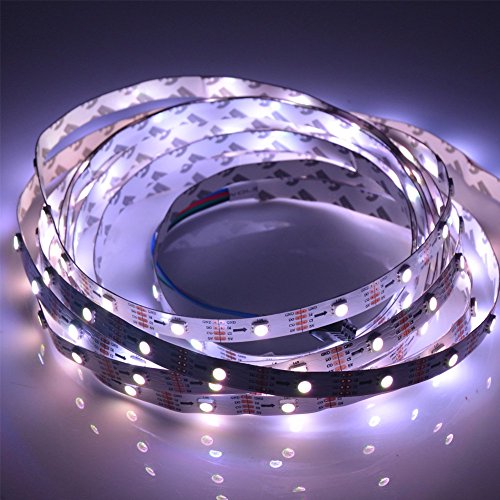

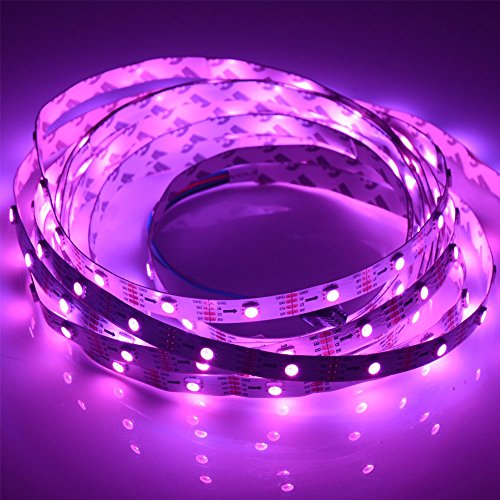

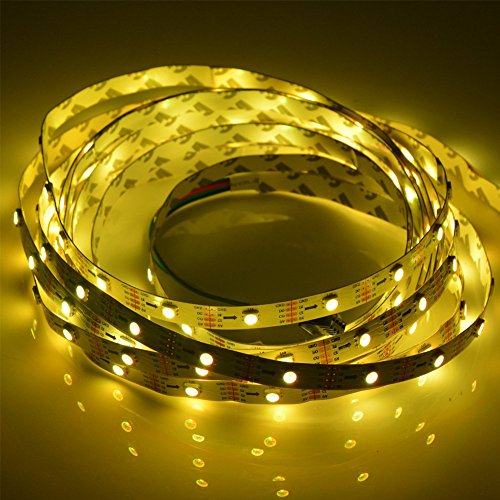

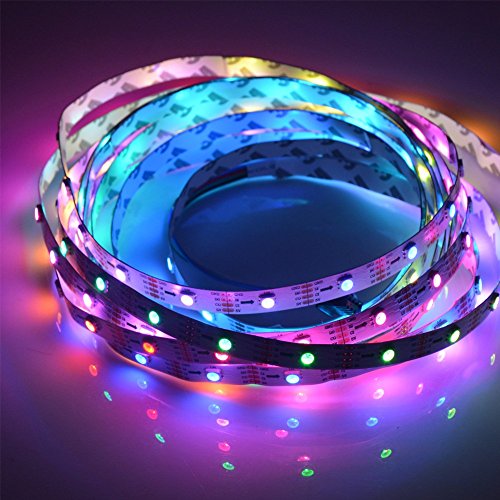

Yaqing Lighting 3.2ft/1m APA102 -C 36 LEDs/m 5050 RGB Individually Addressable Pixel Magic LED Strip DC5V (White PCB IP33 Non-waterproof) [並行輸入品]

商品説明

High Quality 5050 SMD LED, high intensity and reliability..
LED source :5050SMD RGB built-in APA102 chipset

IC Type:APA102C

Working Input Voltage: DC5V

Drive Mode:Contant Voltage

LED Quantity: 36leds/Meter (each LED is separately controlled)

IC Quantity: 36IC/Meter (1 IC drives 1 led chip)

Pixels :36/Meter

Grey scale:256

Color:Full color RGB

FPCB Size: 1000*10*2.5(mm)

View angle:120°

FPCB color: White PCB

Waterproof: IP33-----Non-waterproof

Cuttable: every LED is cuttable

Output power: 10.8W / Meter

Working Tempreture:-20° to 60°

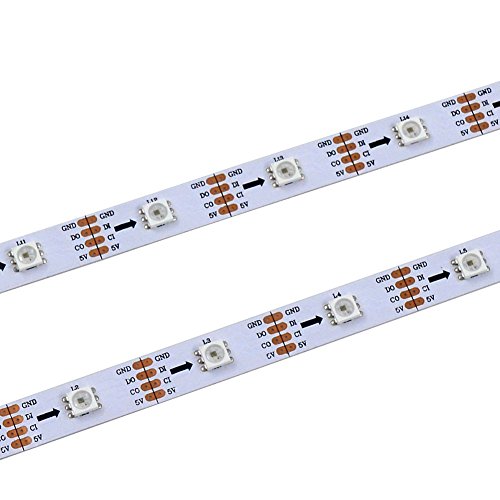

1.APA102 have 4 Wire input and output : Data ,Clock ,GND ,Anode, build in ic, double signal .

2.APA102 LED made in Taiwan with high lumen LED chip, refresh date 400 cycle. So APA102 LED strip could accept large date from controller and change color smooth without flickers also keep high brightness.

3.Grey scale 256, 256(Red)*256(Green)*256(Blue)=16777216 colors that APA102 LED can change. Keep LED show smooth color effect when changing color.

Package included:

1x3.2ft APA102 5050 RGB 36 LEDs White PCB addressable color LED strip Non-waterproof IP33 DC 5V

1x 4pin male JST connectors
