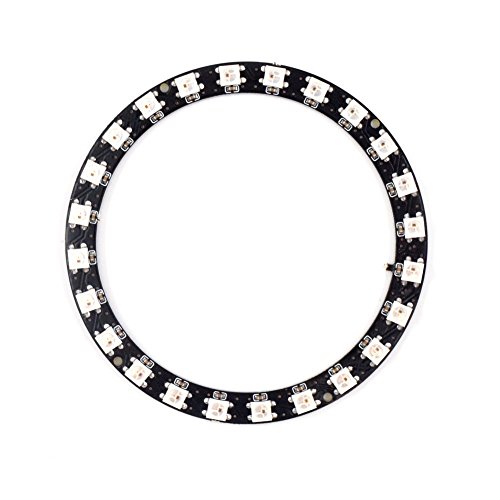

Yaqing Lighting WS2812B LED Ring 5050 Built-in RGB Driver For Arduino Integrated LED Lighting Ring DC5V (24 Pixels Ring) [並行輸入品]

商品説明

trichromatic color of each pixel can realize 256 highlighted, complete 16777216 colors of all true color display, the scanning frequency is not less than 400Hz / s.. Features:

- Intelligent reverse polarity protection, power supply reverse polarity will not damage the IC.

- IC control circuit and a power LED spot light utility.

- Control circuit chip with RGB components in a package in 5050, to form a complete external control pixels.

- built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate.

- Built-in power-on reset and brown-out reset circuit.

- trichromatic color of each pixel can realize 256 highlighted, complete 16777216 colors of all true color display, the scanning frequency is not less than 400Hz / s.

- serial cascade interface, through a signal line to complete the receiving and decoding of data.

- transfer transmission distance between any two points in less than 5 meters without any additional circuitry.

- When the refresh rate of 30 frames / sec, cascading number of not less than 1024 points.

- data transmission speeds of up to 800Kbps.

- The color of the light highly consistent, cost-effective.

Specifications:

1.Working voltage：DC5V

2.Outer Diameter of Full Circle: 9.3cm

3.Inner Diameter of Full Circle: 7.7cm

4.Width of individual section: 8mm

5.Height: 2mm/0.1"

6.Weight of individual section: 50g

Package Includes:

1 x 24leds WS2812B 5050 RGB LED Ring
