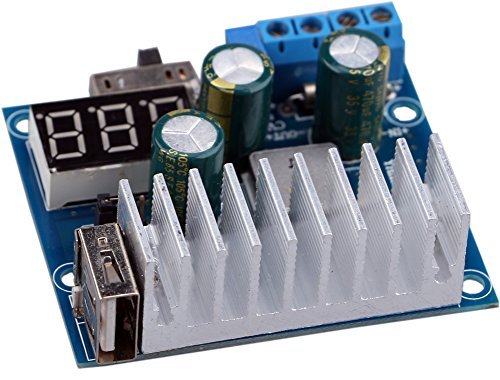

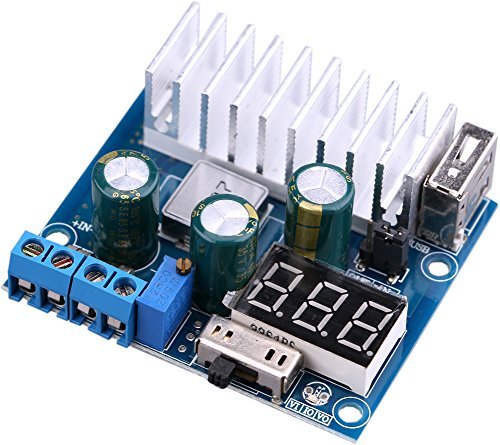

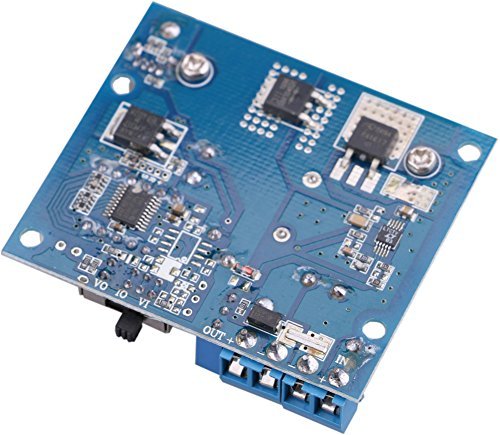

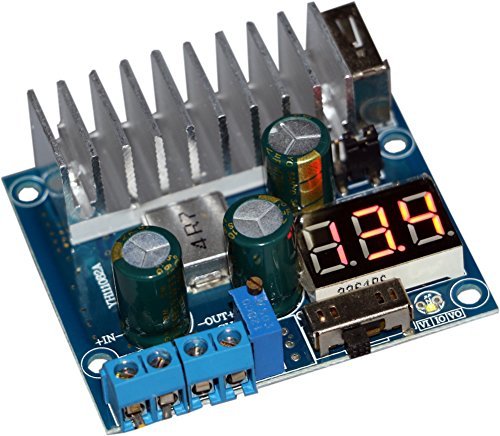

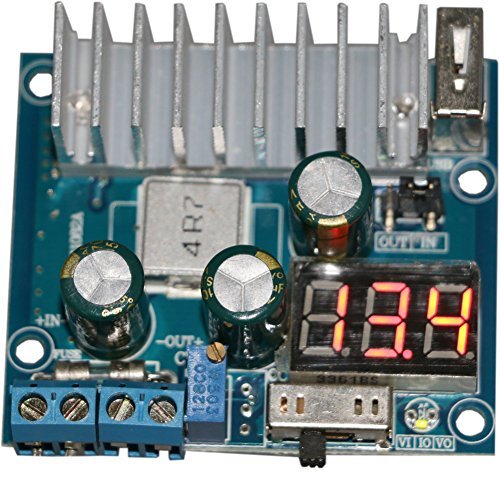

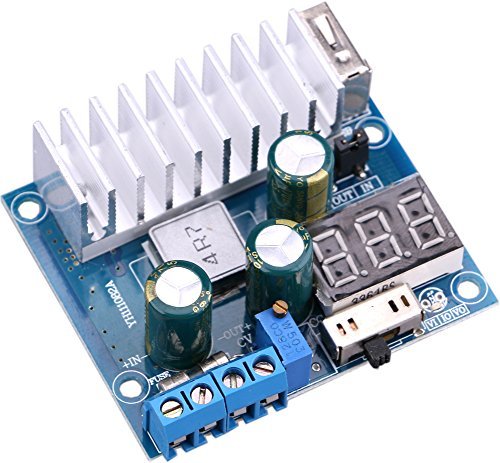

Yeeco 100W DC to DC Voltage Regulator Power Converter Boost Step Up Power Supply Module Volt Panel Meter Board with USB output for Charging with LED Display [並行輸入品]

商品説明

Module parameters:
Module Name: 100W boost module
Module Properties: non-isolated step-up module (BOOST)
Input voltage: DC 3-35V (the limit 36V)
Input Current: 10A (MAX) Please enhance heat dissipation than 6A
Quiescent Current: 15mA excluding voltmeters current (12V rise up20V, the output voltage is higher, the quiescent current will increase)
Output voltage: DC 3-35V continuously adjustable
Output Current: 6A MAX，Please enhance heat dissipation exceed 5A
(Input and output voltage dropout related，The greater the voltage difference，Output current is smaller)
Output power: = Input voltage * 6A, such as: Input 3.8V * 6A = 22.8W, 5V * 6A = 30W,12V * 6A = 72W, input 24V * 6A = 144W
Operating temperature: -40 to +85 ° C (ambient temperature is too high, please enhance heat dissipation)
Operating Frequency: 280KHz
Conversion efficiency: Up to 96% (efficiency is related to input and output voltage, current, voltage difference related)
Overcurrent protection: Yes (input exceeds 12A, automatically reduces the output voltage, have a range of error.)
input Reverse Polarity Protection: None, (if required in the input string into the diode) Identification resistor: Tablet PC, pad, phone (some phones identification circuit is different, need to be adjusted)
Voltmeter minimum resolution: 0.05V (10V following automatic switching decimal point)
Installation: 4 pcs 3mm screws
Wiring: Free welding output terminals
Module dimensions: length 60mm *width 50mm *height 20mm
Short circuit protection: (input 15A fuse) double circuit protection, use more secure.
