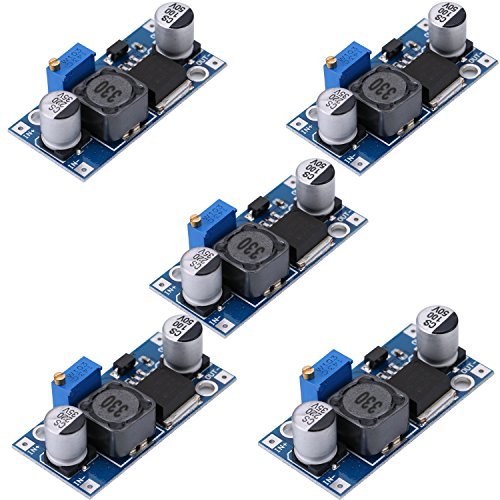

eBoot 5 Pack Boost Converter Module XL6009 DC to DC 3.0-30 V to 5-35 V Output Voltage Adjustable Step-up Circuit Board [並行輸入品]

商品説明

eBoot 5 Pack XL6009 DC to DC 3.0-30 V to 5-35 V output voltage adjustable step-up power converter module

Good performance
DSN6009 is a good-performance 400KHz 4A switch currency step-up boost module. This module XL6009E1 is coming with the 3rd generation high-frequency switch technology as the core chip, the performance is much higher than LM2577.

With mounting holes

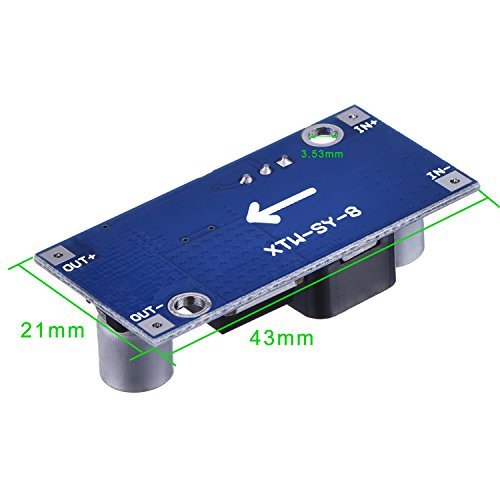

There are two mounting holes on the diagonal side, the holes are 0.139 inches/ 3.53 mm, it is a good efficiency non-isolated boost module.

Specifications
DSN6009 booster module
Nature of the module: unfenced step-up (Boost)
Rectifying way: synchronous rectifier
Input range: 3 V to 32 V
Output range: 5 V to 35 V
Input current 4 A (maximum), no-load 18 mA (5 V input, 8 V output, no-load less than 18 mA. The higher the voltage, the greater the no-load current)
Conversion efficiency: < 94 % (the greater the pressure difference, the lower the efficiency)
Switching frequency: 400 KHZ
Output ripple: 50 mV (the higher the voltage, current, the ripple is larger)
Load regulation: plus or minus 0.5%
Voltage regulation: plus or minus 0.5%
Working temperature: - 40 ℃ to + 85 ℃
Overall dimensions: 43 mm x 21 mm to 14 mm (length x width x height)

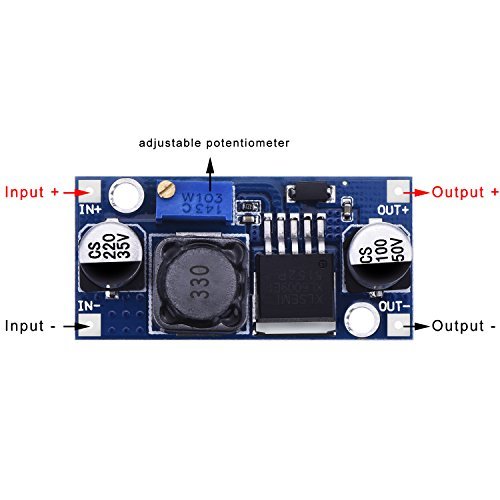

Attention: do not plug this booster to your project before adjusting the potentiometer.

Package includes:
5 x DC-DC Step-up module
