eMylo DC 24V 4x 1 Channel 433Mhz RF Relay Wireless Remote Control Light Switch Receiver with 2pcs Transmitters [並行輸入品]

商品説明

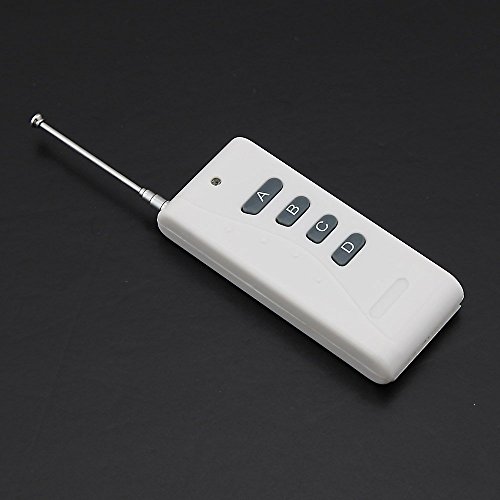

Mainly applied for: Remote control of the on and off of pump,machine-tool,socket,LED lights,doors,alarm system,motor bike,MP3 and other Civil and industrial supporting remote areas.. Transmitter
Operating Voltage: 12V
Operating Frequency: 433Mhz
Vibration Resistance: 4.7M
Chip Type: 2264
Modulation: ASK (Stable, less interference)
Encode Type: Bonding pad welding code
Battery Type: 12V 23A(not included)
Remote Distance: 100m(Theoretical value)
Ambient TEMP: -30℃ -70℃, Humidity<95%
Product Dia: 85x36x15mm

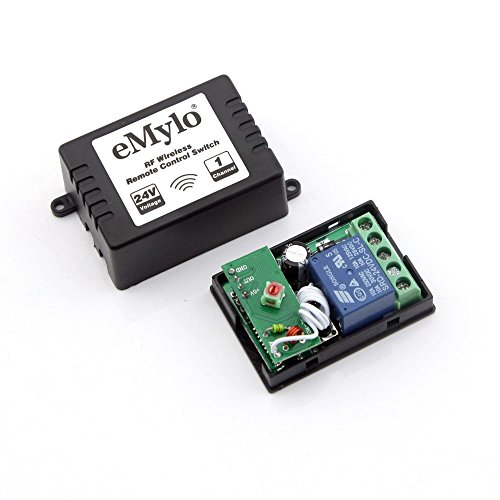

Receiver
Input Voltage: DC 24V
Operating Frequency: 433Mhz
Coding Way: Intelligent Learning
Output Type: Passove output
Max load: 7A
Ambient TEMP: -30℃ -70℃, Humidity<95%
Factory Default: Self-locking
Board DIM: 45x30.5x17mm
Case DIM: 65x37x22mm

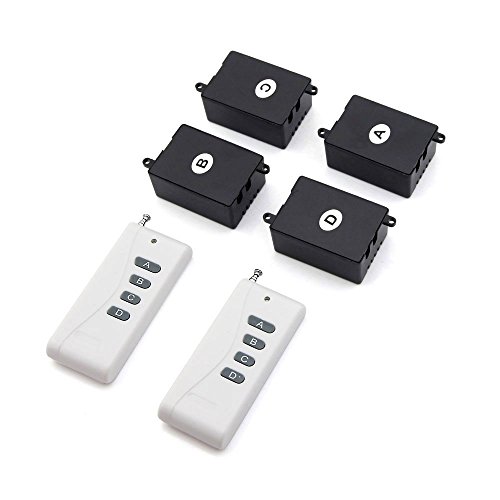

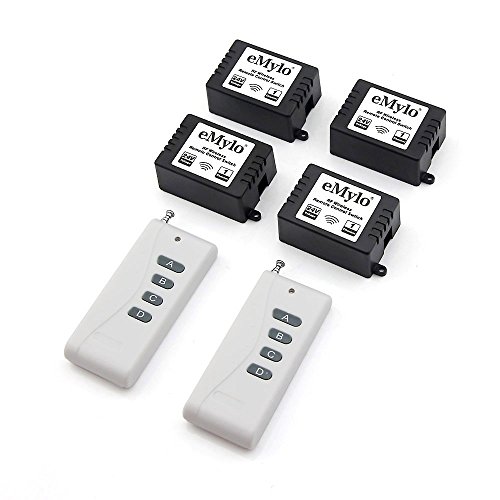

Package Includes:
2X Transmitters (Battery is not included)
4X Receivers
1X English Manual


Three modes:
Inching: press&hold one button, the reply turns on, release the button, the reply turns off.
Self-lock: press the one button, the reply turns on, press the button again, the reply turns off.
Interlock: press the one button, the reply turns on, press the next button, the reply turns off.

Steps:
Clear:
Press&hold the program button on the receiver, the red light will turn on and stay on for about 5 seconds.

Choose the mode:
inching/momentary :release the button after the light flashes once.
Self-lock/ latched:release the button after the light flashes twice.
Inter-lock/ toggle:release the button after the light flashes three times.

Link the remote control:
Press the program button on the receiver until the red light turns on, and then release the program button, the red light will stay on.
Press a transmitter button, and the red light will flash, at this time, it means finished linking.
