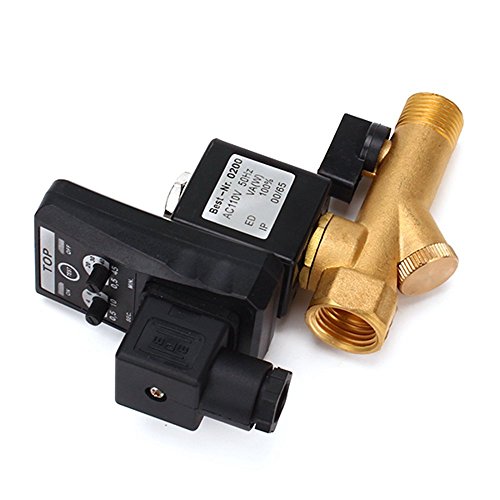

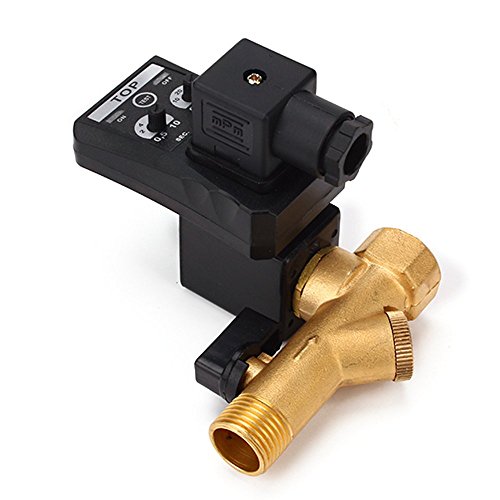

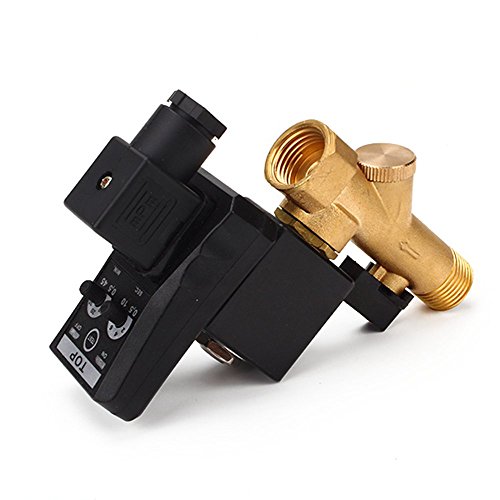

CNBTR 1/2" AC110V Multifunction Automatic Electronic Timed Air Compressed Drain Valve [並行輸入品]
- メーカー
- yqltd
- ブランド
- CNBTR Valves/Valve Accessories
- JAN
- 6930584257955
- メーカー品番
- CNBTR510
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The Timer Drain Valve is Used to drain water from your air tank and any other application where you want a timed operation controling fluid to an open end.
Easy to install, fully automatic operation
Removable filter for easy cleaning.
Emission time and interval time are controlable.
Equipped with a ball valve filter, split with drain valve, an L-shaped structure
Specifications:
Time interval (OFF): 0.5 to 45 minutes
Discharge time (ON): 0.5 to 10 seconds
Manual test button ( micro switch )
Power supply voltage: AC110 50HZ
The current consumption of the largest 4mA
Ambient temperature: minus 40°C to 60°C
Shell material: Flame retardant ABS plastic
Electrical connection: DIN43650A
Indicator lamp: LED indicating power on / off
Type: two two direct-acting valve
In / out port size: 1/2"
Maximum working pressure: 1.6Mpa
Maximum temperature: 90°C
Forging brass valve, flow aperture of 5 mm
Insulation: class H
Protection grade: IP65
Voltage range: ±10%
Weight:508g
Package included:
1 x Automatic Electronic Timed Drain Valve
特記事項
- 新品、並行輸入品です。Brand new parallel imports from the US.
- The Timer Drain Valve is Used to drain water from your air tank and any other application where you want a timed operation controling fluid to an open end.
- Removable filter for easy cleaning.
- Emission time and interval time are controlable .
- Not only does this valve seal more reliably and easily than the cheap twist type valves
